Basic Specifications
Using Ambient
Hospital & Home
Functionality
Five-function / 3-Function Electric
Certification
CE, FDA, ISO13485
Overall Size
2160*1060*(400-740)mm
Motor System
American motor, UL/ROHS/EN standard
Product Features

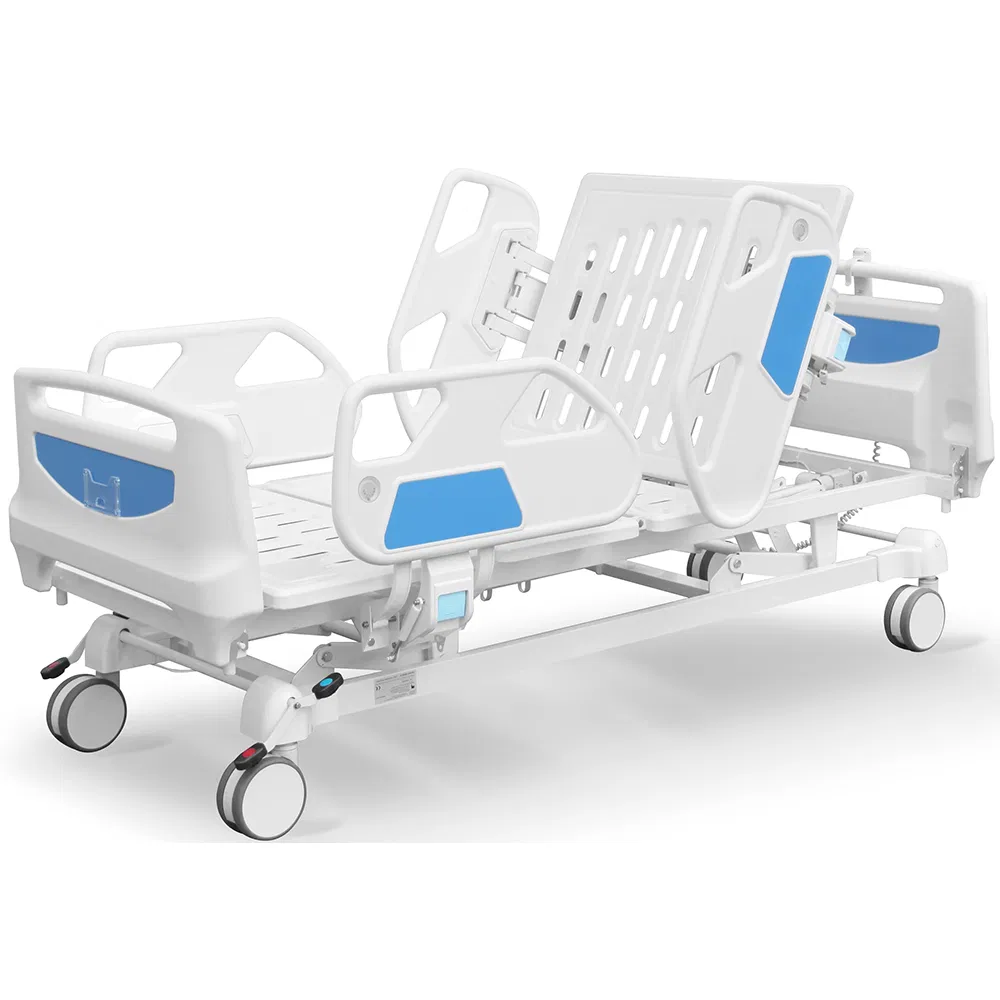

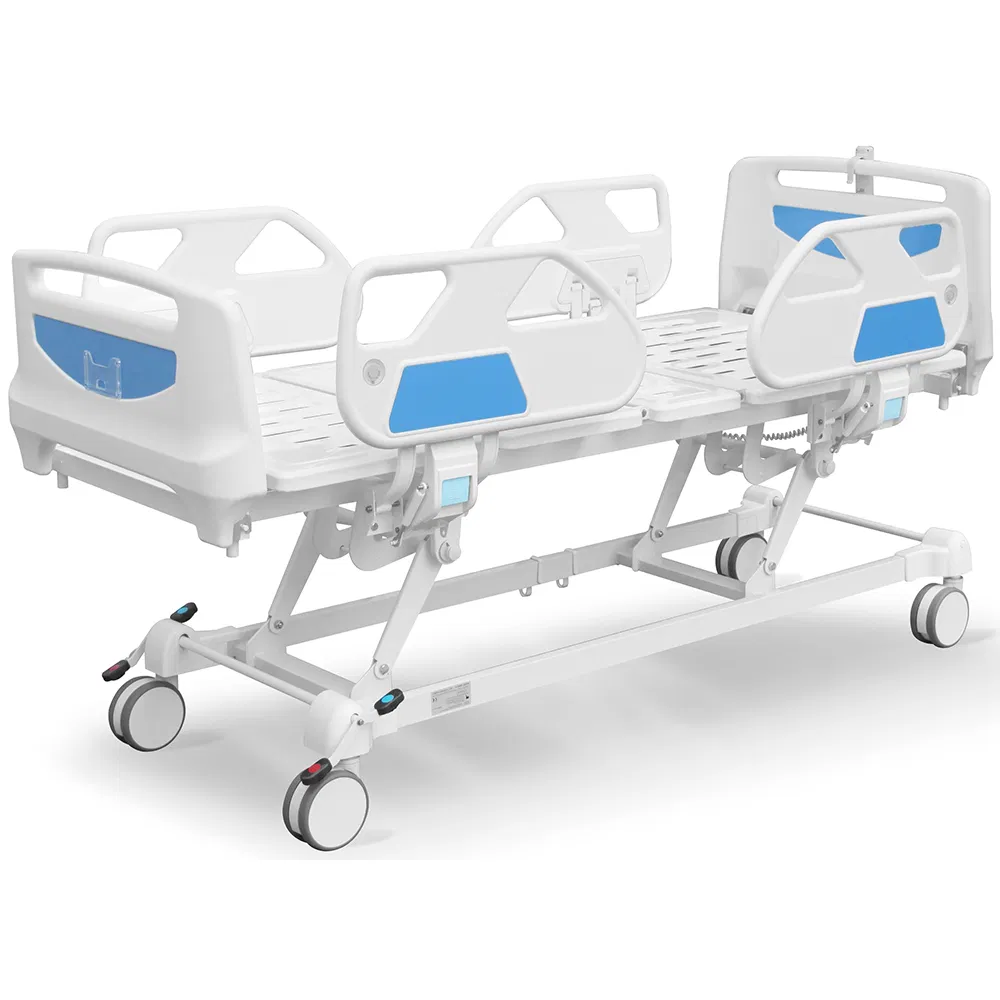

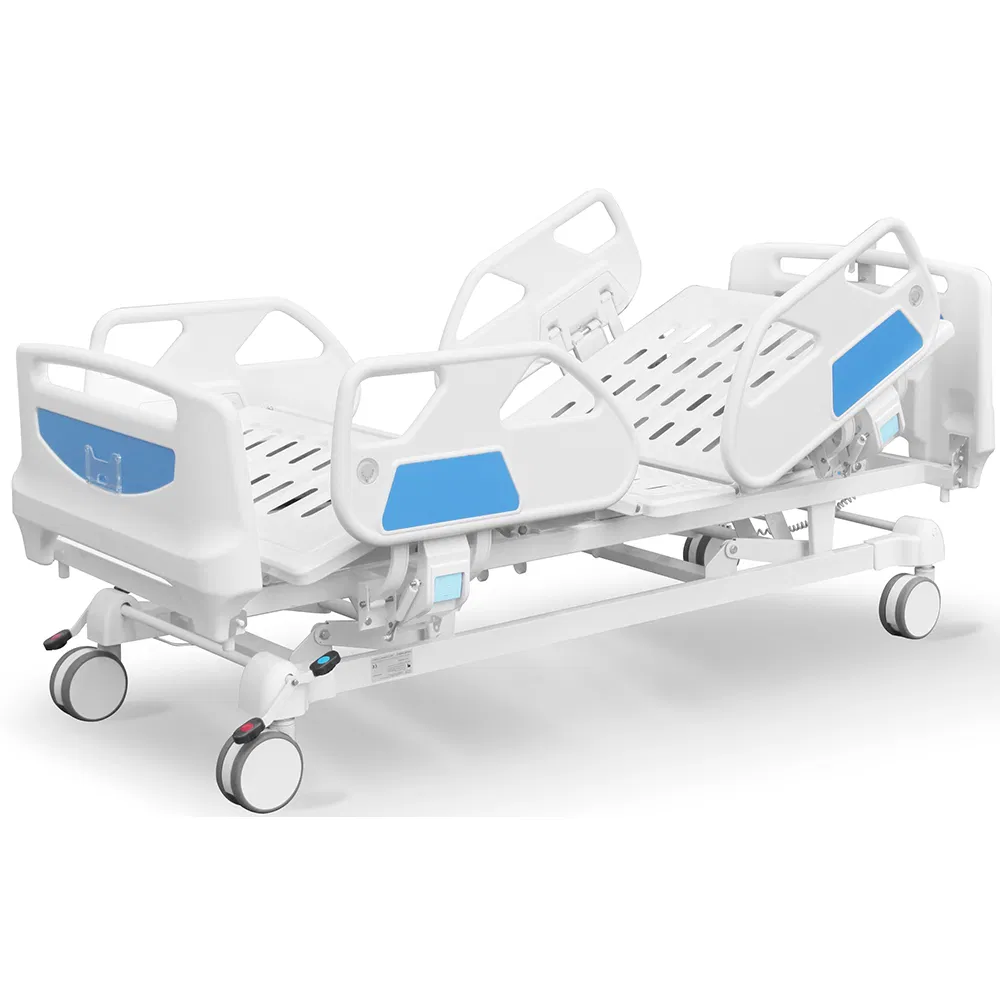

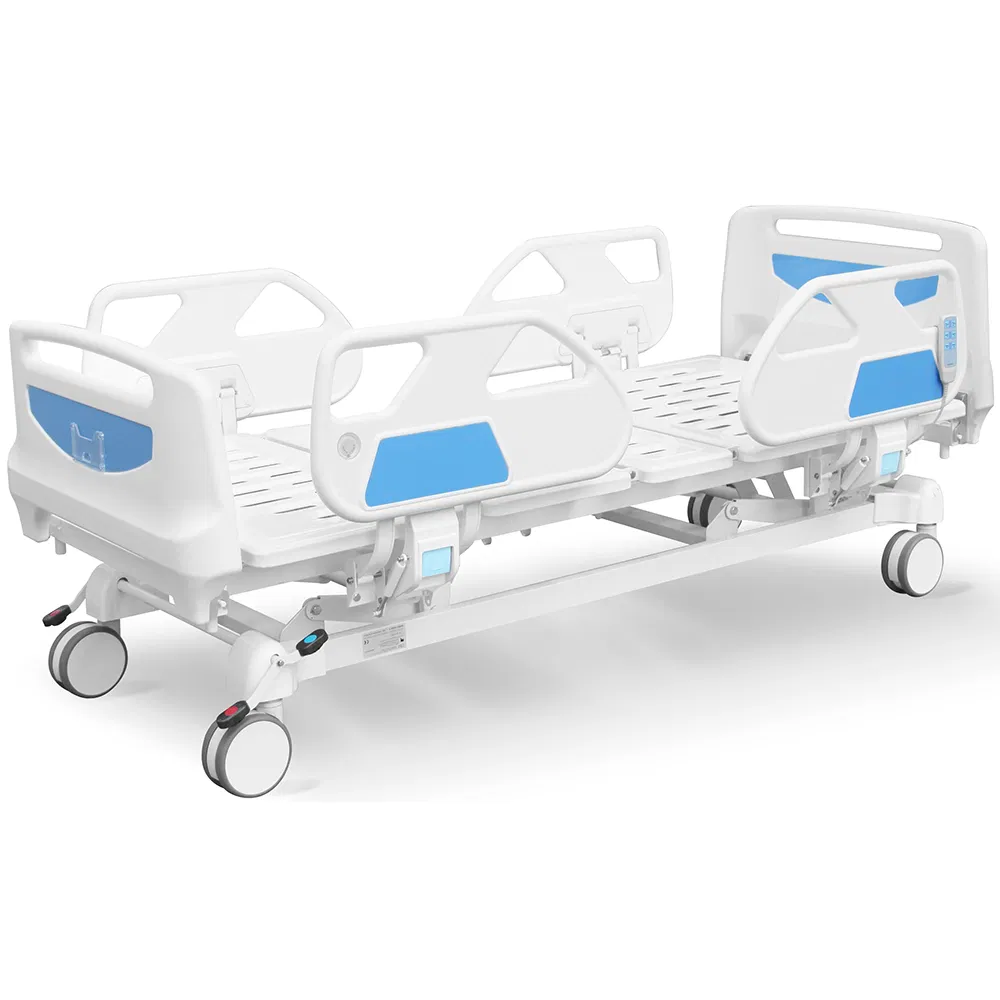

B5e8y-sh Hydraulic Hospital Electric ICU Patient Bed

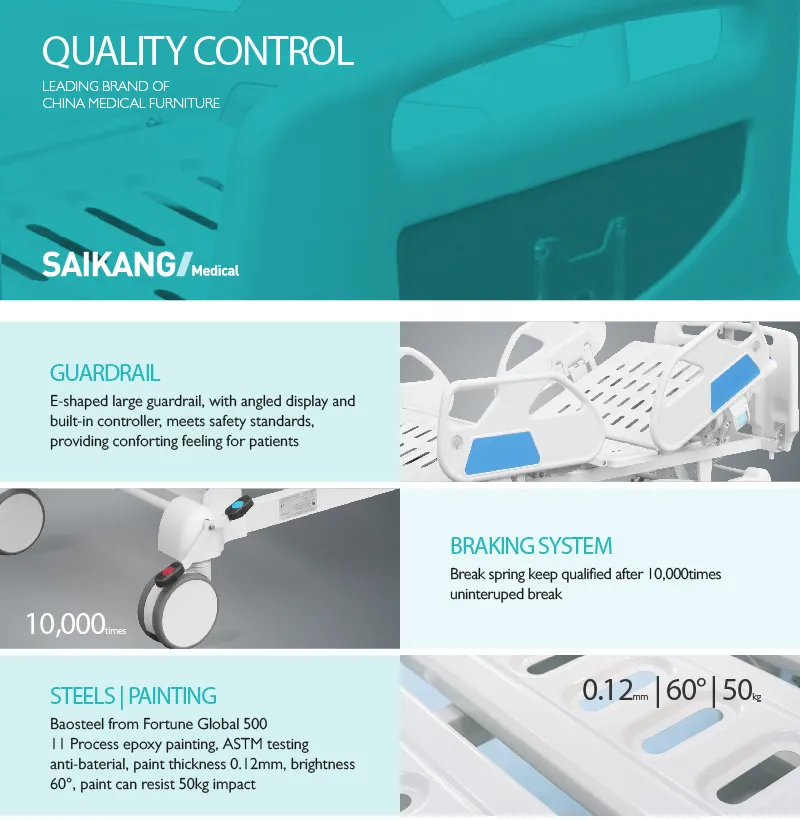

Important Quality Control
- E-shaped large guardrail with angled display and built-in controller.
- High-quality steel from Fortune Global 500 providers.

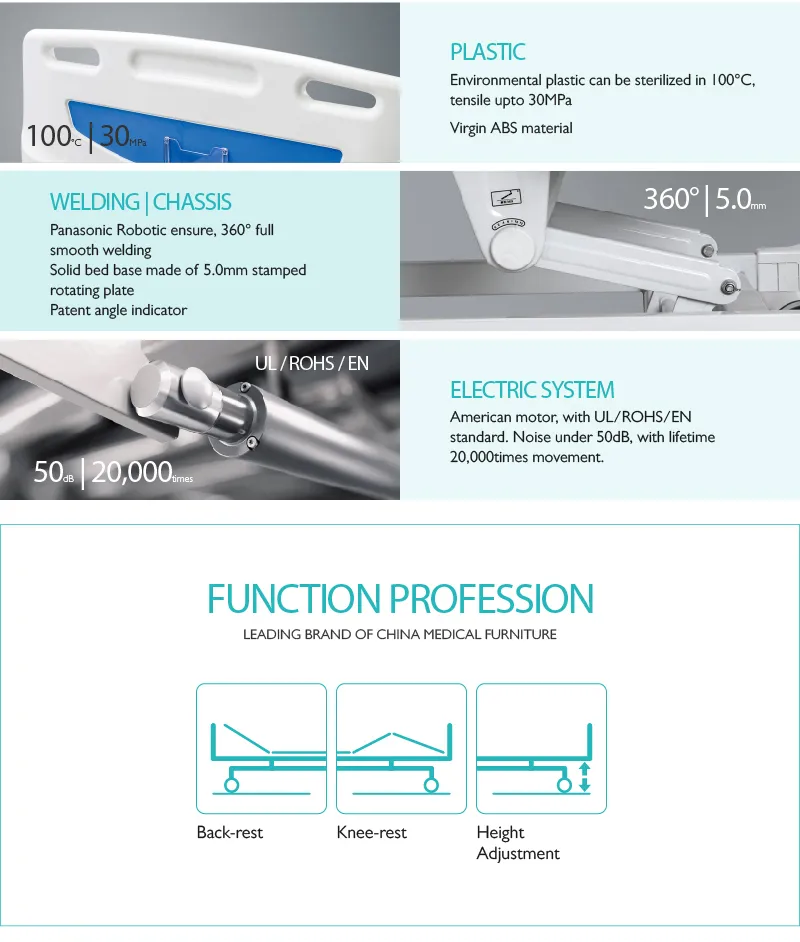

- Environmental plastic sterilizable at 100°C, tensile up to 30MPa.
- Solid bed base made of 5.0mm stamped rotating plate.
- 11 Process epoxy painting, ASTM testing anti-bacterial, paint thickness 0.12mm.
- American motor with noise under 50dB, rated for 20,000 movements.
- 360° full smooth welding via robotic systems.
- Secure® castors with dust and hair prevention covers.

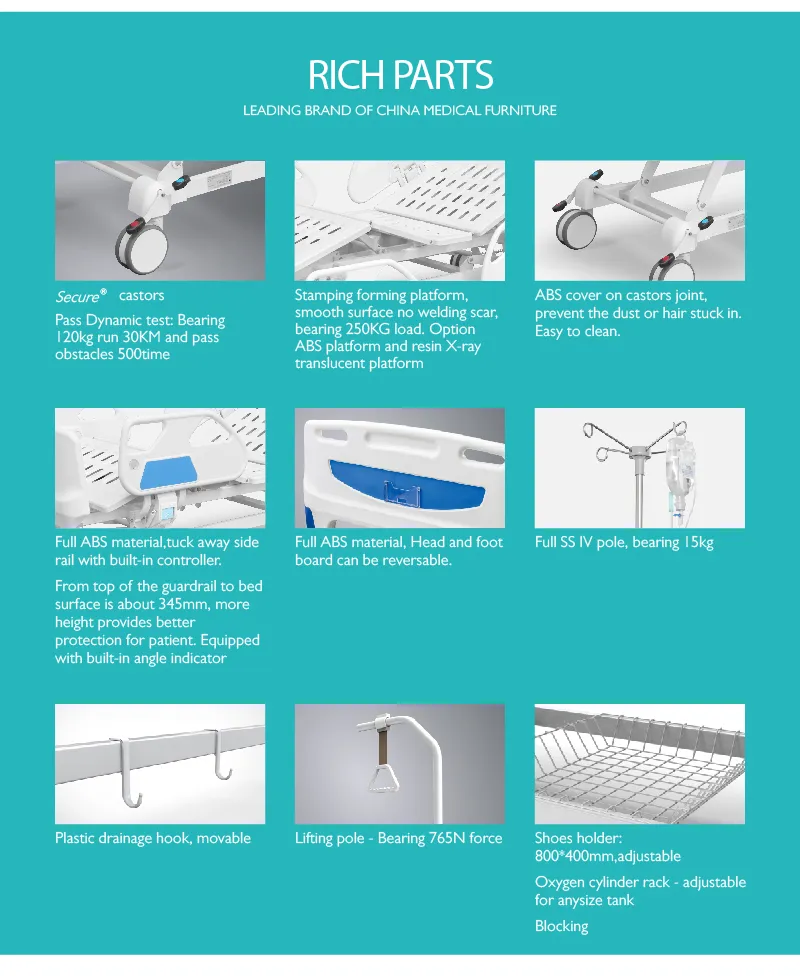

Accessories & Details
- Battery: Supports up to 130 movements without bearing.
- Lifting pole: Bearing 765N force.
- Oxygen cylinder rack: Adjustable for any size tank.
- Utility basket: Large size 600*540*80mm.
- Weighing system: Accuracy 0.01kg with memory function, Kg/Ib switchable.
- 4.3 inch LCD display showing movement angles.
Technical Parameters
| External L*W*H |
2160*950*(400-740)mm |
| Utility Basket |
600*540*80mm |
| Safe Working Load |
250kg |
| Back-rest Adjustment |
0-75°(±10°) |
| Knee-rest Adjustment |
0-35°(±10°) |

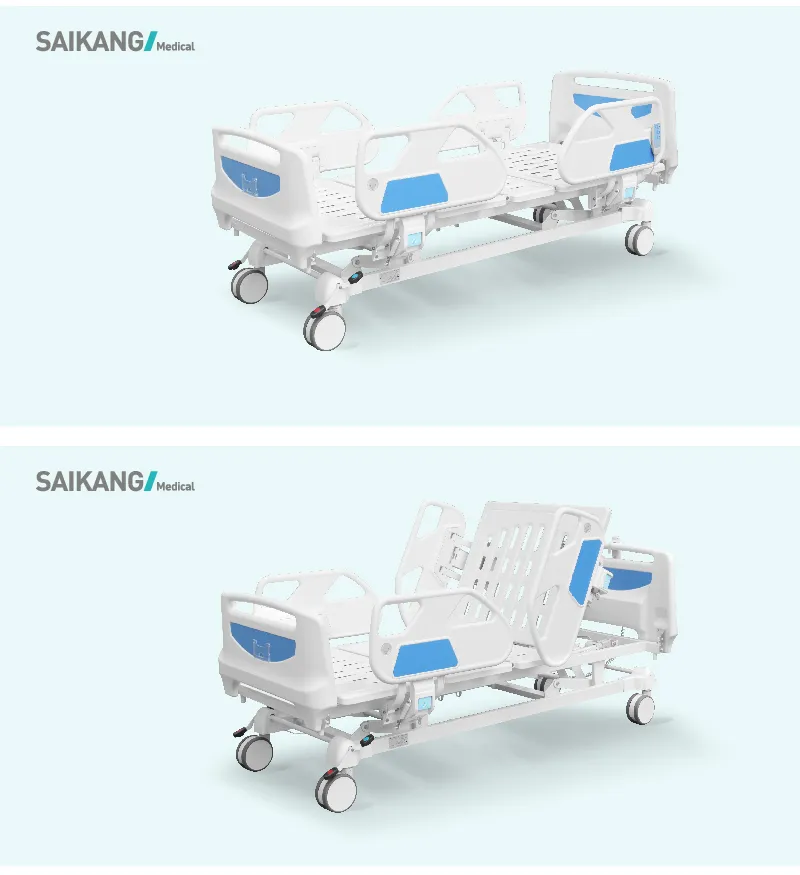

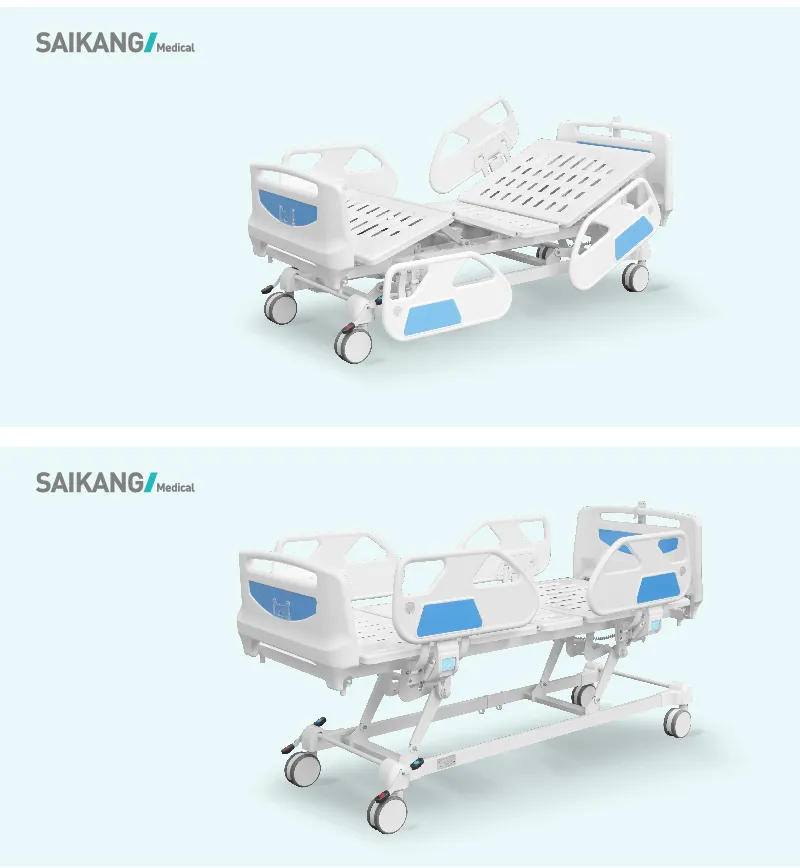

Product Gallery
Frequently Asked Questions
What is the safe working load for this patient bed?
The bed is designed with a high-strength stamping forming platform that can safely support a working load of up to 250kg.
Does the bed include a weighing system?
Yes, it features a built-in weighing system with a memory function and an accuracy of 0.01kg. It supports both Kg and Ib units.
What are the main electronic features of the ICU bed?
The bed is equipped with American standard motors (UL/ROHS/EN approved), an integrated guardrail controller, a 4.3-inch LCD display for angle tracking, and a backup battery.
How does the bed ensure patient safety?
Safety is ensured through extra-height ABS side rails (345mm above bed surface), built-in angle indicators, and secure castors with dust covers to ensure smooth and stable movement.
What certifications does this medical bed hold?
The product is fully certified with CE, FDA, and ISO13485 standards, meeting international medical safety requirements.
Is the bed suitable for X-ray imaging?
While the standard version comes with a stamping forming platform, there are options for an ABS platform or a resin X-ray translucent platform for specific clinical needs.
