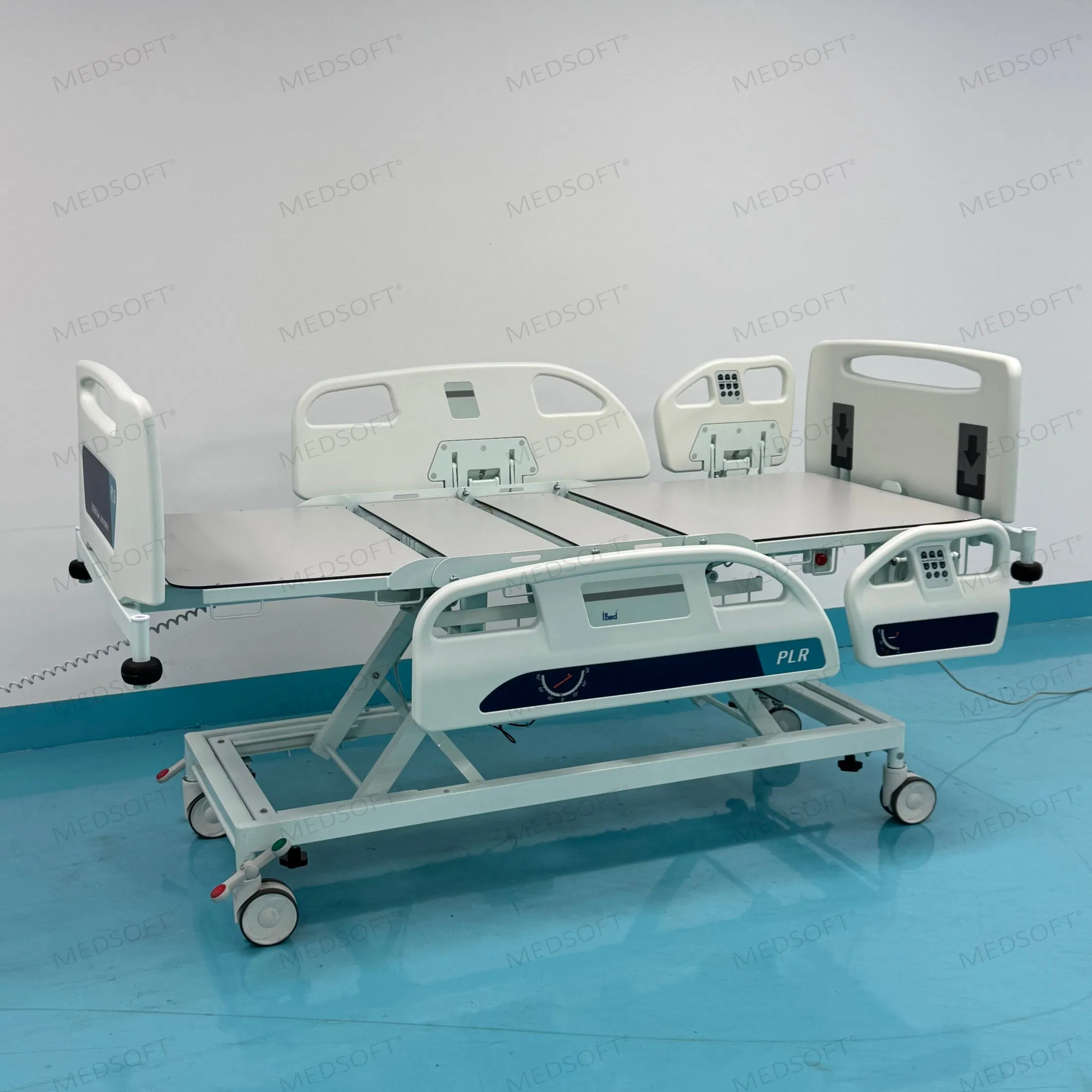

iBed PLR3 Bariatric Electric Bed with Robust Frame and Powerful Motor

■

Basic Information

Model NO.	PLR3	Folded	Unfolded
Using Ambient	Hospital	Functions	Seven Function
Certification	CE, ISO13485	Condition	New
Features	Passive Leg Raising, weighing	Specification	22001035415-785mm
Production Capacity	12000 PCS/Year	Package	Carton/Wooden Box

■

Product Description

Name	Electric Medical / Hospital Bed (iBed PLR 3)
OEM/ODM	Available	Samples	Available
Service	Lifetime	Spare Parts	1% Free
HS Code	94029000	Manufacturer Type	Over 17 Years Experience

■

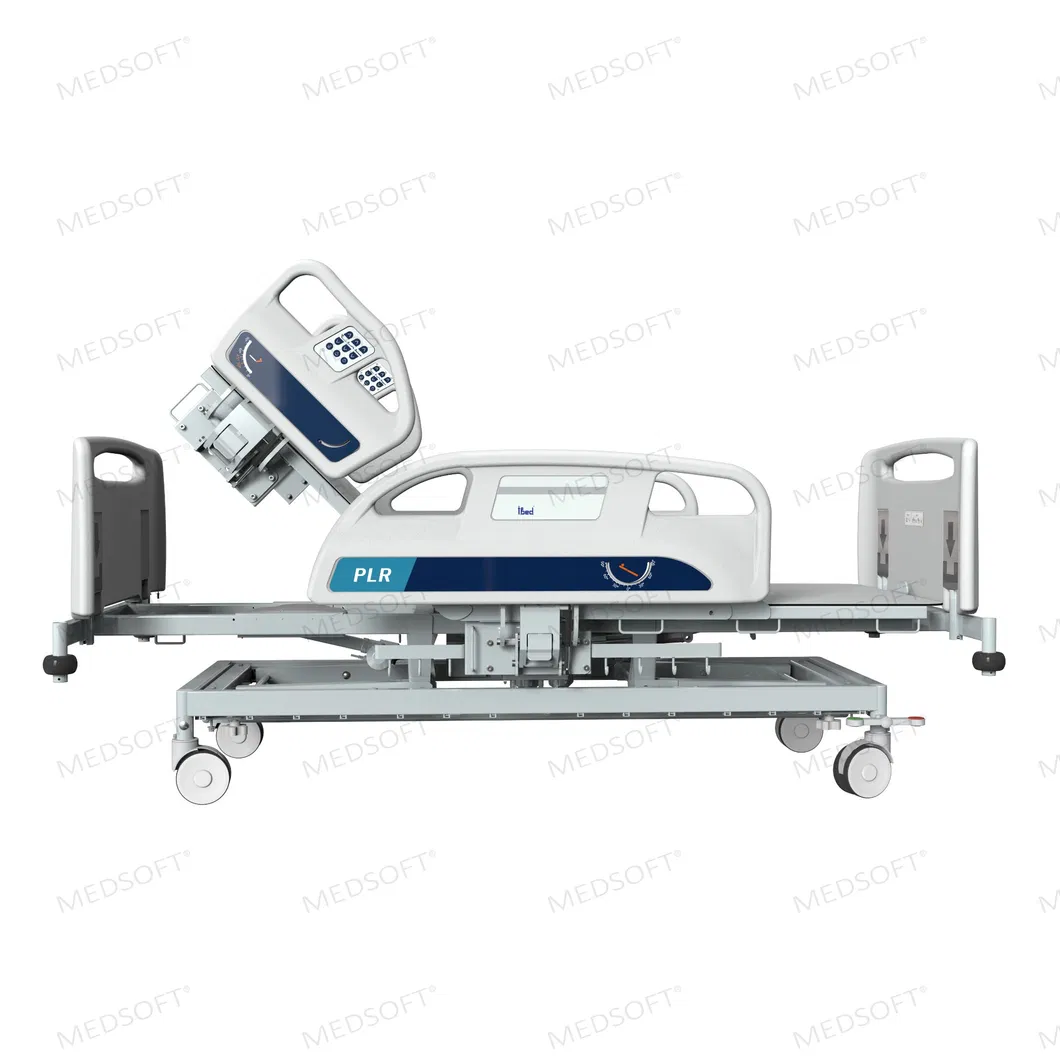

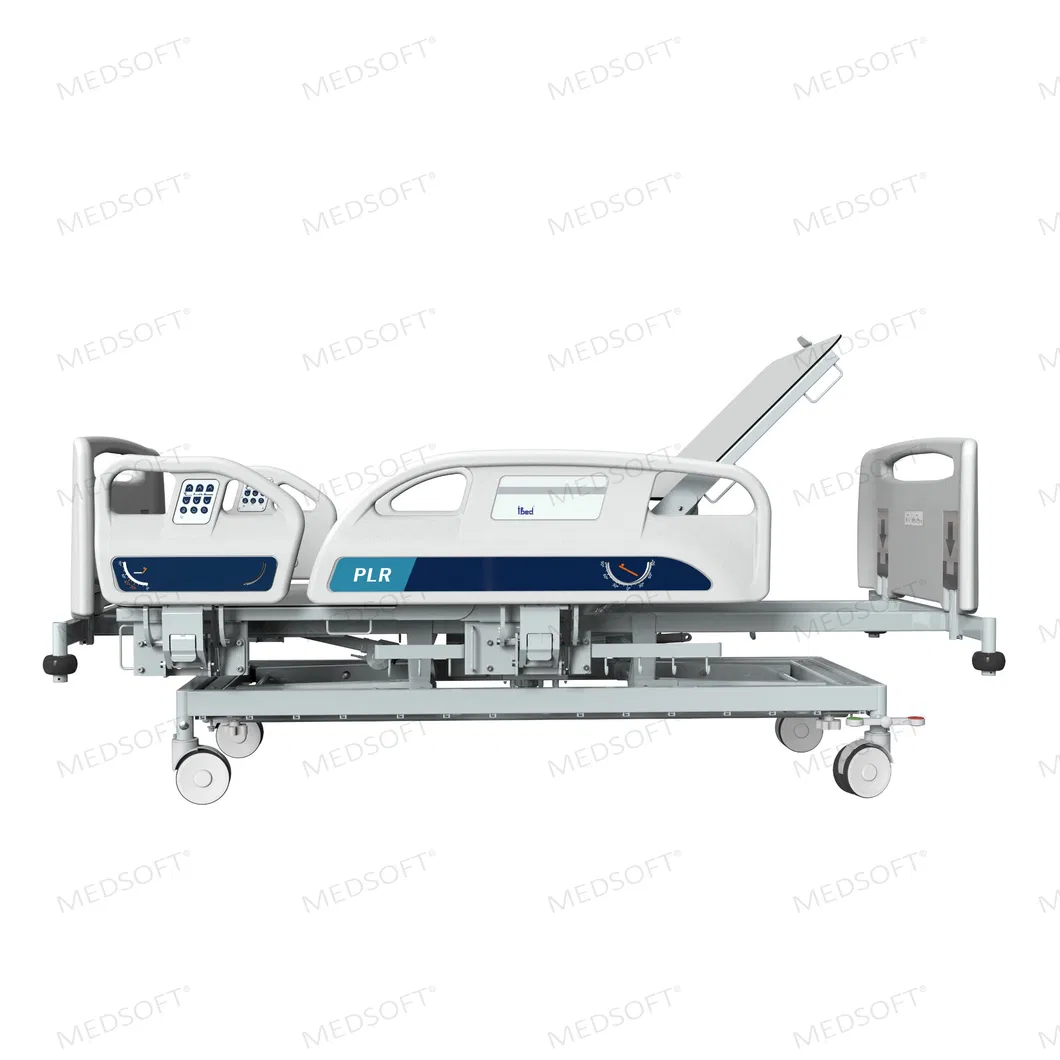

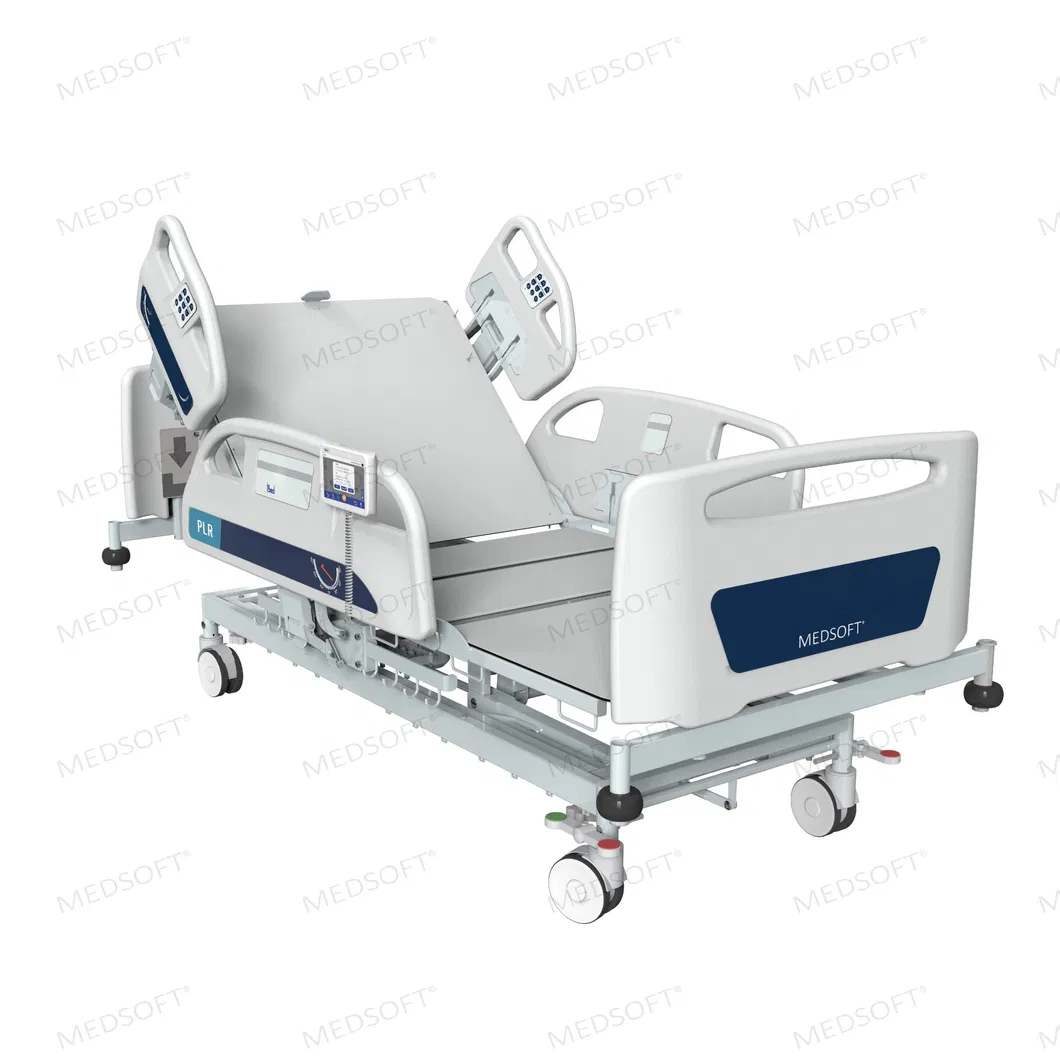

Detailed Photos

■

Product Parameters

Overall Width	≥845mm
Overall Length	≥1960mm
Bed Height Range	415-785mm

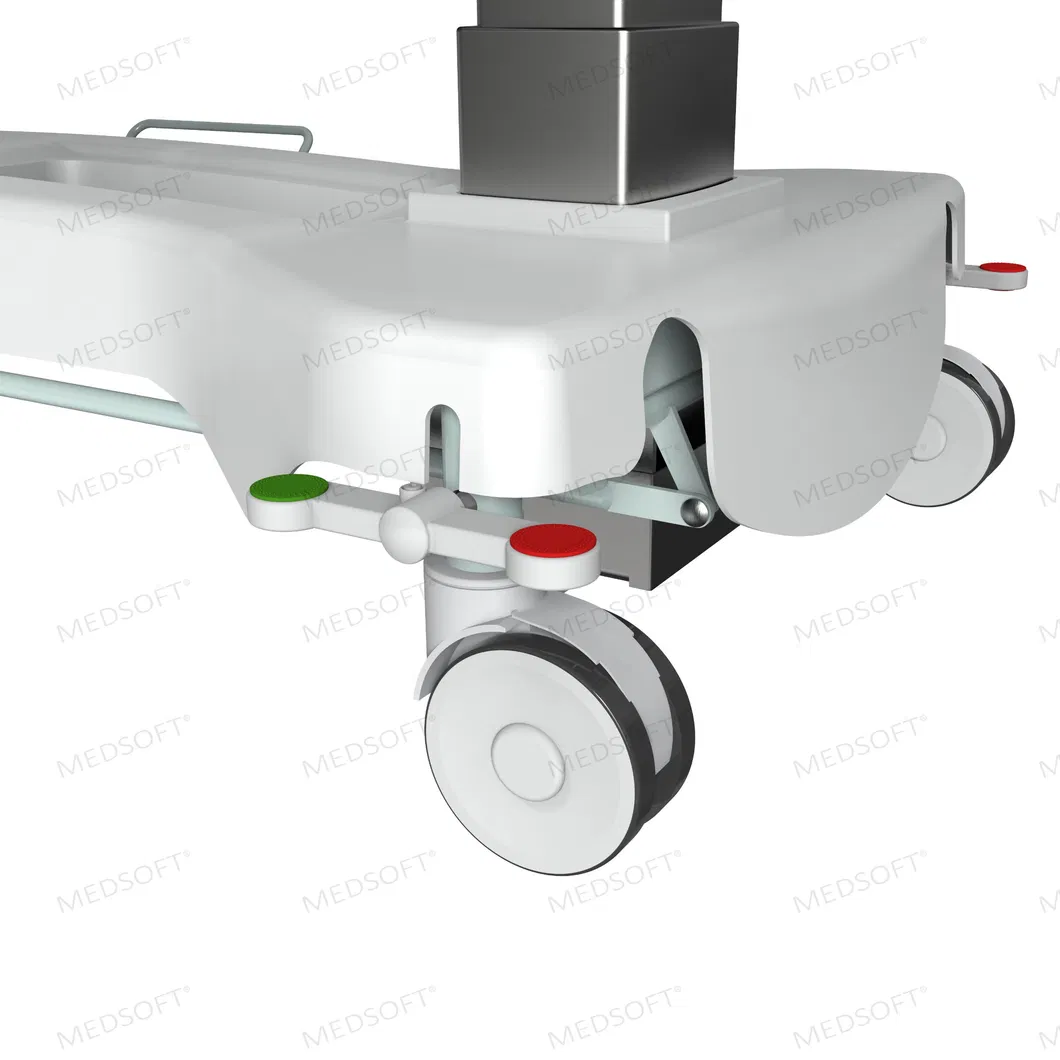

Caster Size	≥120mm
Total Weight (Safe Load)	165kg
Head Section Inclination	0-70°
Foot Section Inclination	0-43°
Trendelenburg Position	0-16°
Special Function	PLR, Precision weighing system (accurate to 0.01Kg)

■

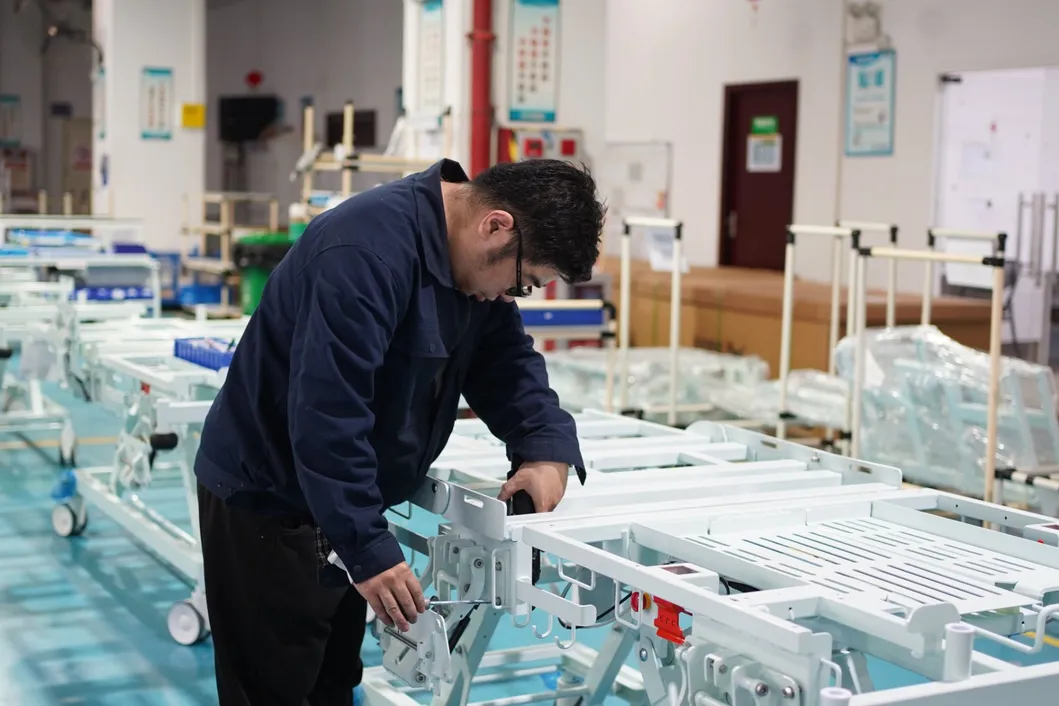

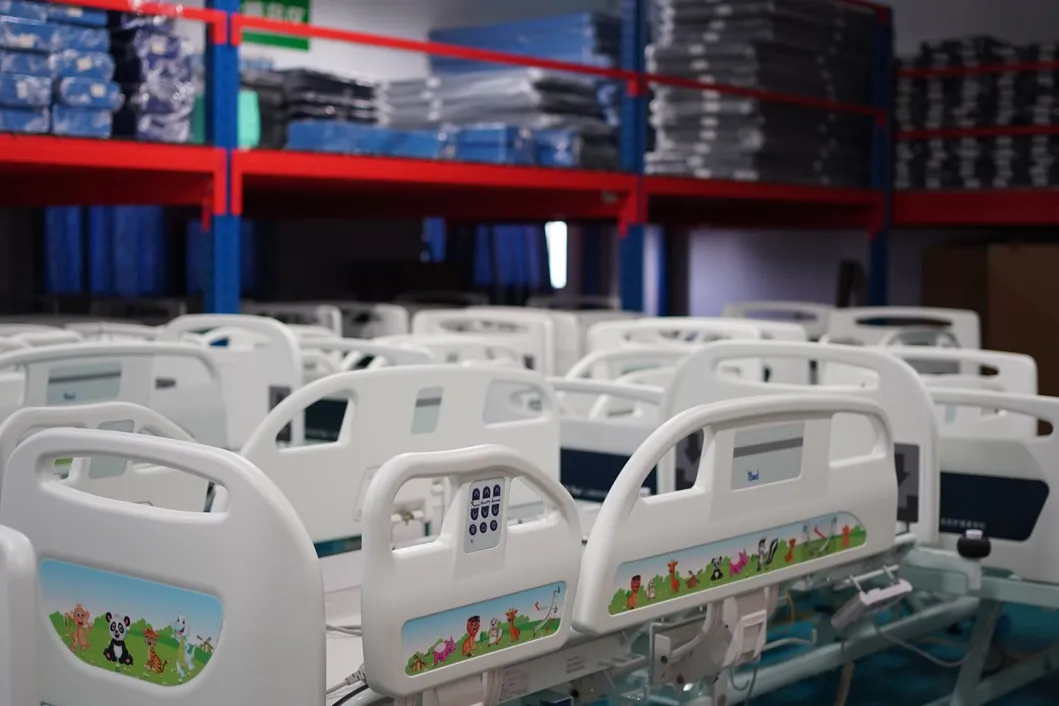

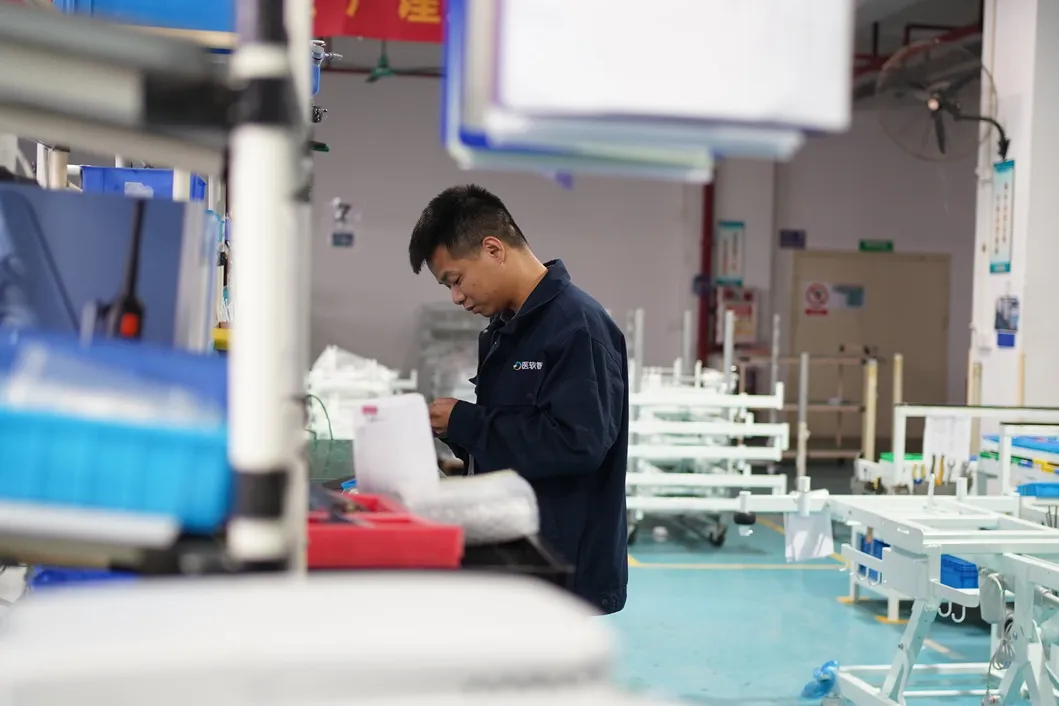

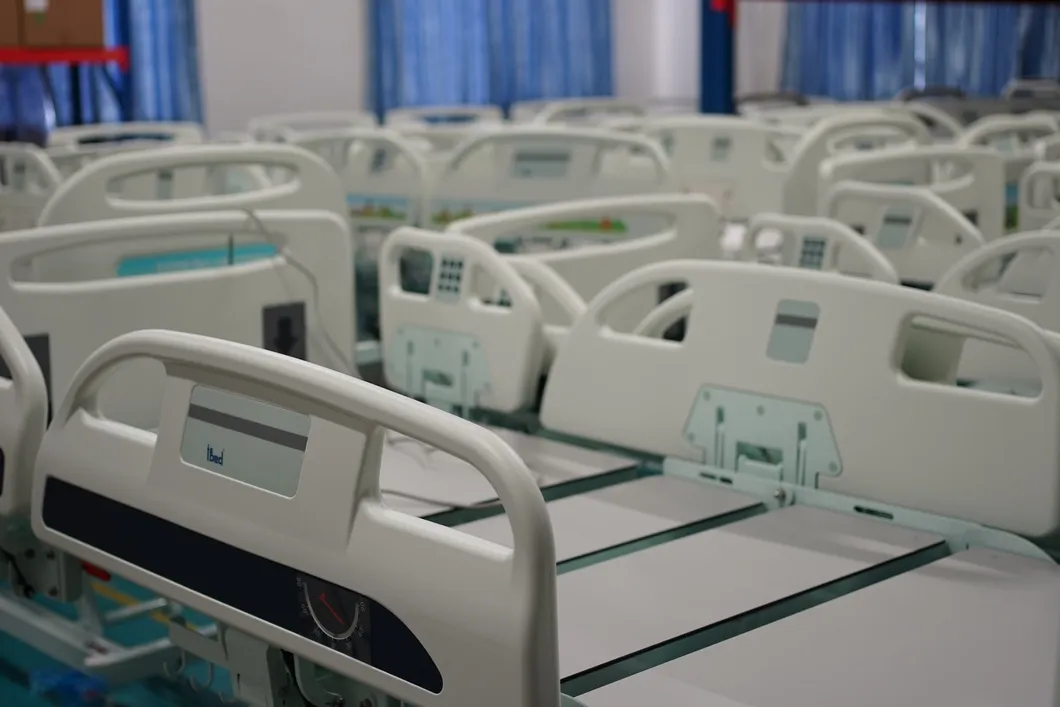

Production Overview

■

Key Advantages & Functions

★ Multi-Functionality: Comprehensive 7-function electric adjustment system.

★ Wide Height Range: Adjustment from 430mm to 790mm, compatible with C-arm imaging equipment.

★ One-Button Positioning: Includes Cardiac Chair, CPR, Fowler, Examination, and Trendelenburg positions.

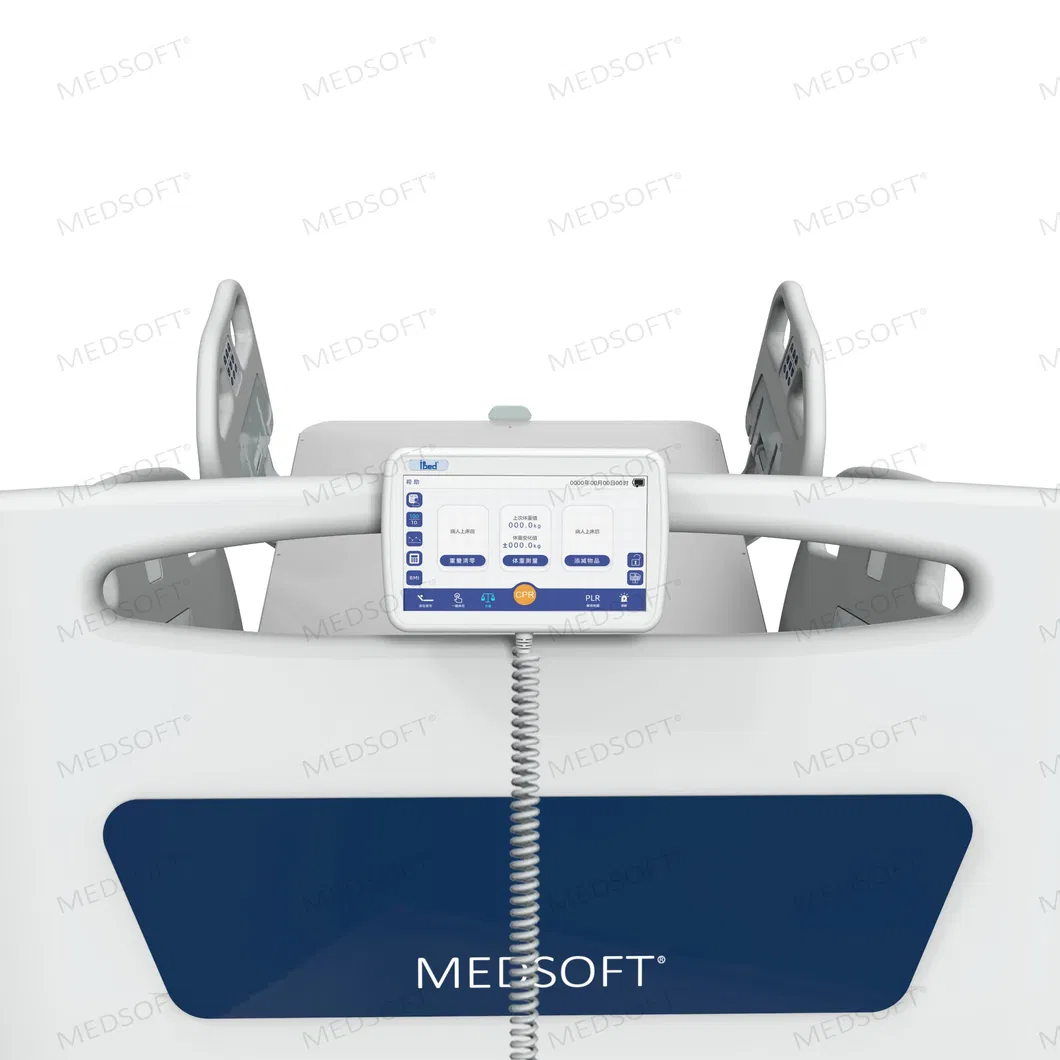

★ Advanced Weighing System: Precision weighing to 0.01Kg with 30-data storage capacity.

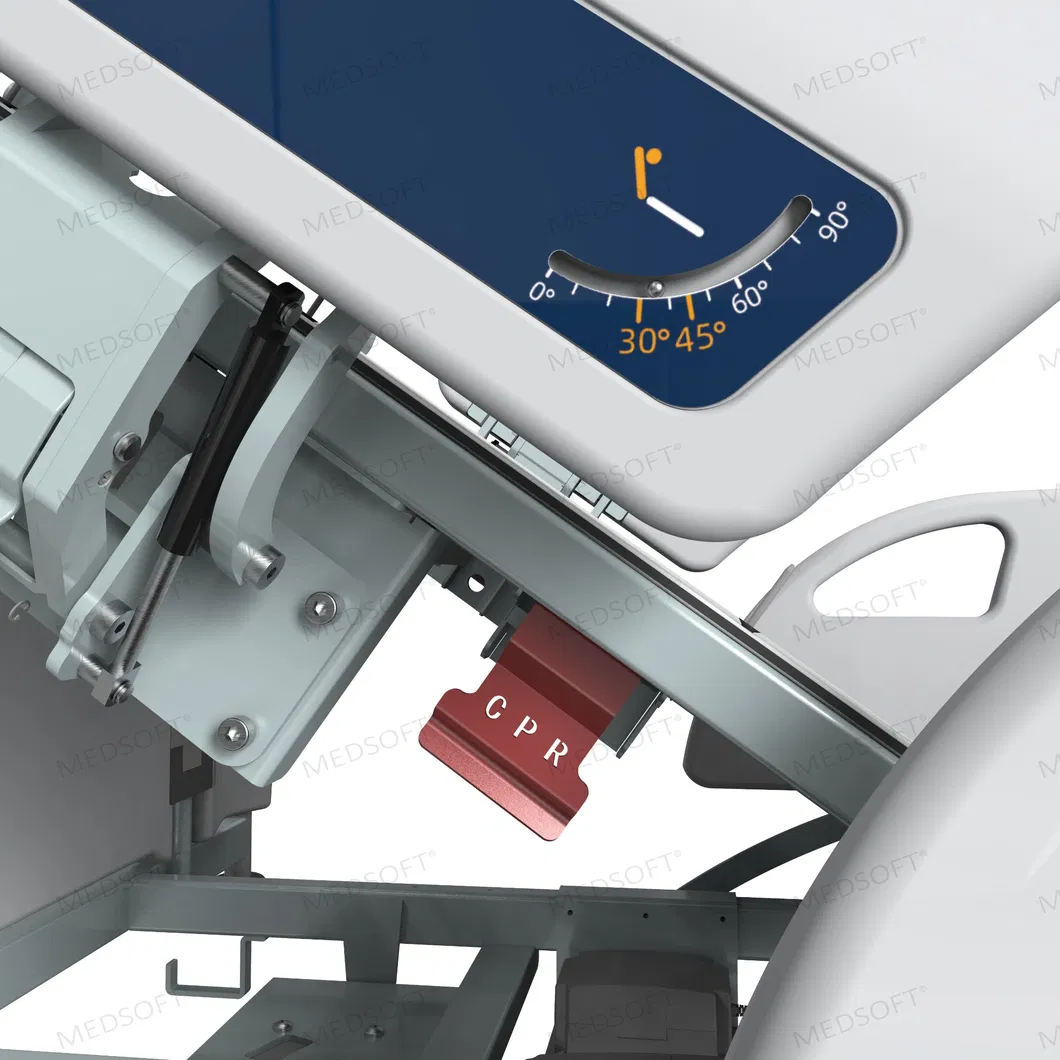

★ Emergency CPR: Both Manual and Electric CPR quick-release functions for the backrest.

★ Safety Controls: Dual-side handles with damping devices for a slow, safe descent of the back section.

★ Pressure Management: One-button Trendelenburg to release abdominal pressure and prevent shock.

Frequently Asked Questions

Q1: What are the primary functions of the PLR3 medical bed?

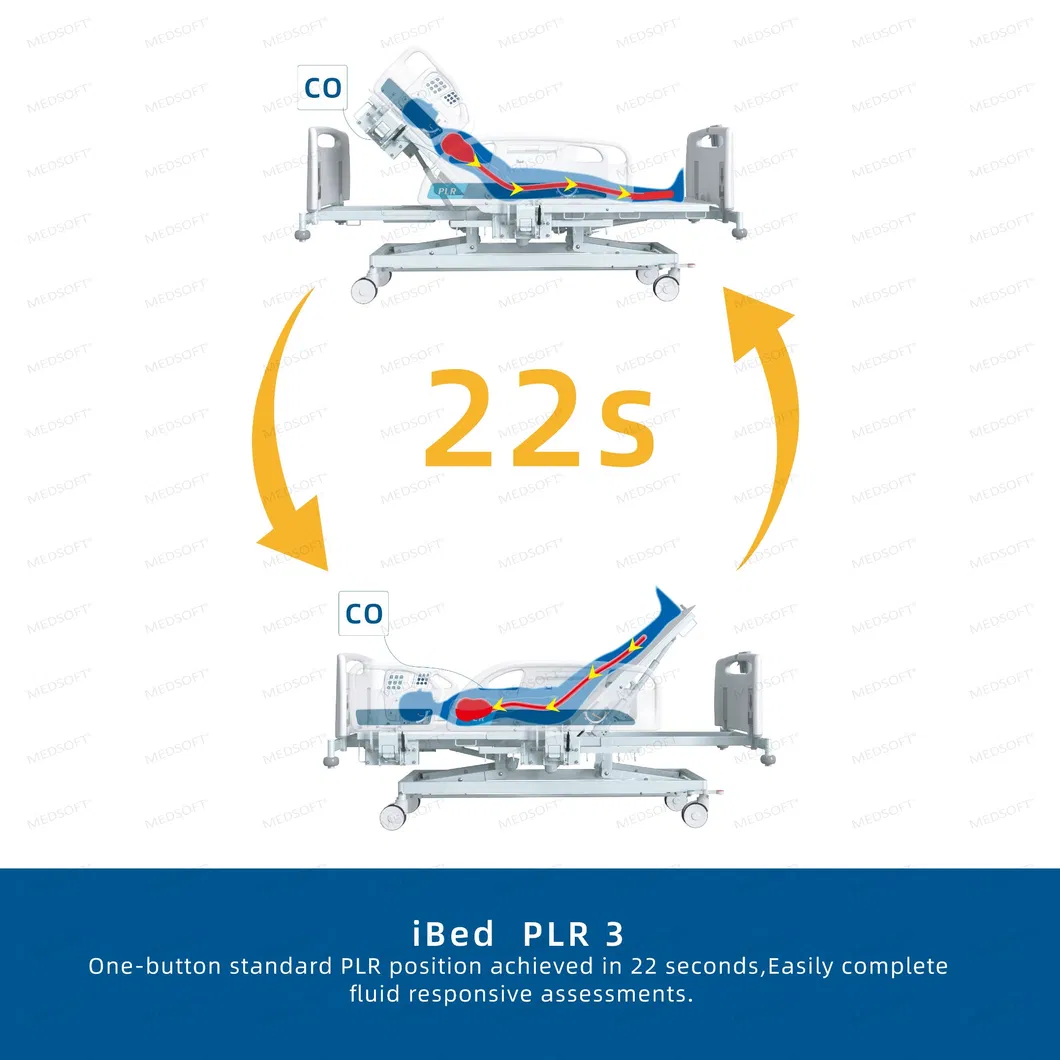

The PLR3 is a highly versatile bed featuring seven main functions, including Passive Leg Raising (PLR) and a precision weighing system.

Q2: How accurate is the integrated weighing system?

The weighing system is extremely precise, accurate to 0.01Kg, and includes a data storage system capable of keeping up to 30 records.

Q3: Is the bed compatible with medical imaging equipment?

Yes, the height adjustment range (430mm-790mm) is specifically designed to accommodate and fit C-arm equipment for bedside procedures.

Q4: What emergency features are included for patient safety?

The bed is equipped with both manual and electric CPR quick-release buttons. It also features a damping device on the backrest to ensure it falls slowly and safely during manual release.

Q5: What certifications does this product hold?

This medical bed is fully certified with CE and ISO13485 standards, ensuring it meets international quality and safety requirements for hospital use.

Q6: Can the bed reach specialized clinical positions?

Yes, it features one-button controls for various clinical positions, including Cardiac Chair, Fowler, Trendelenburg, and Reverse Trendelenburg positions.
