📊 Basic Information
Numbers of Function
Five-function
Certification
CE, FDA, ISO13485, Cfs
Castors
4PCS 5-Inch Central-Brake Wheels
Specification
2140x1000x430-750mm
✅ Why Choose the Hospital Bed?
Hospital beds are designed so that you can provide a loved one with top-quality care when a person is recovering from an injury or needs to spend a large amount of time in bed.
A hospital bed is designed to provide a stable, safe, and comfortable environment for a person to rest, heal, recover, and receive care. Different from traditional beds, it offers greater security and positional versatility, allowing the head and foot sections to be raised or lowered and the bed height to be adjusted.

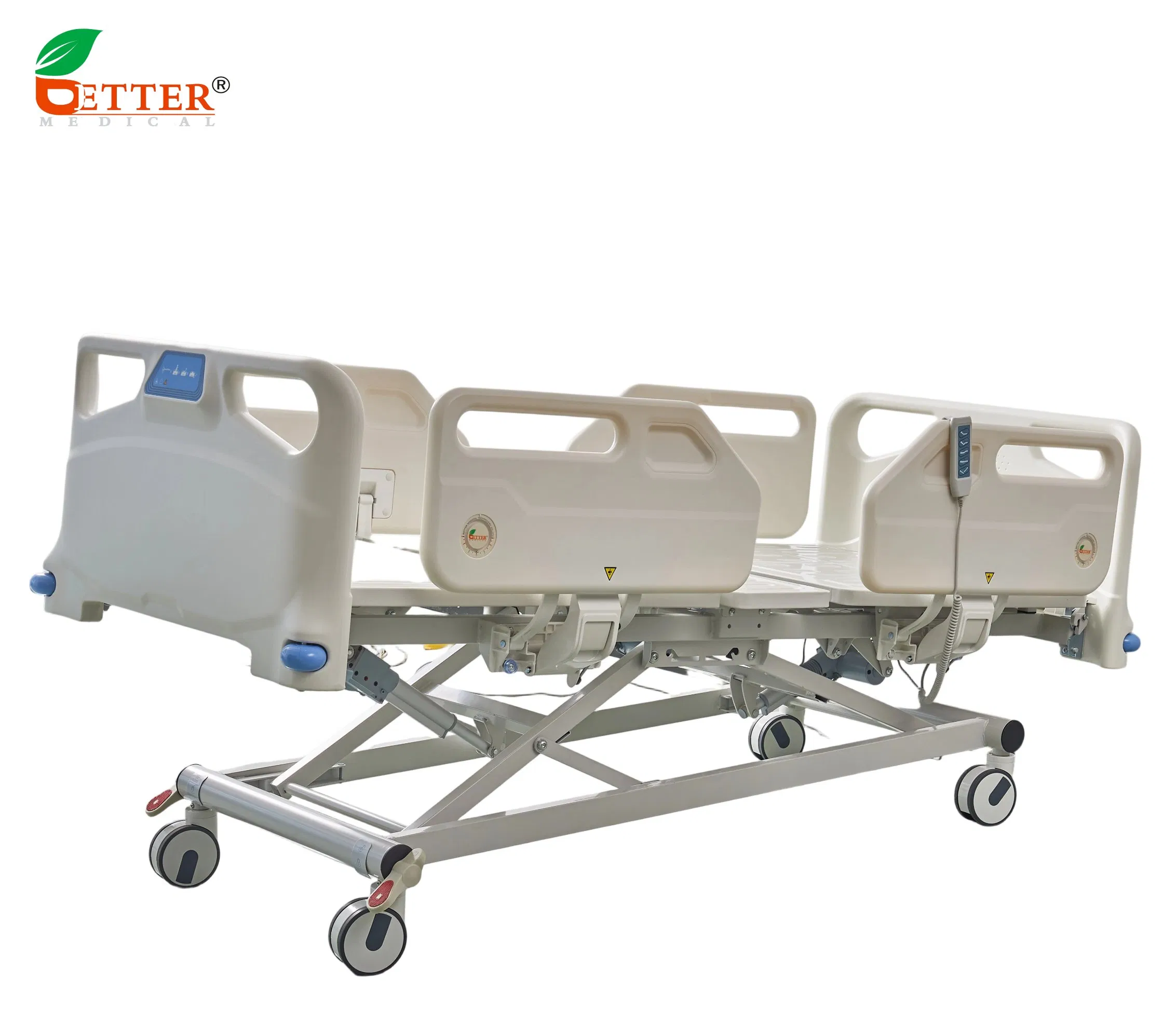

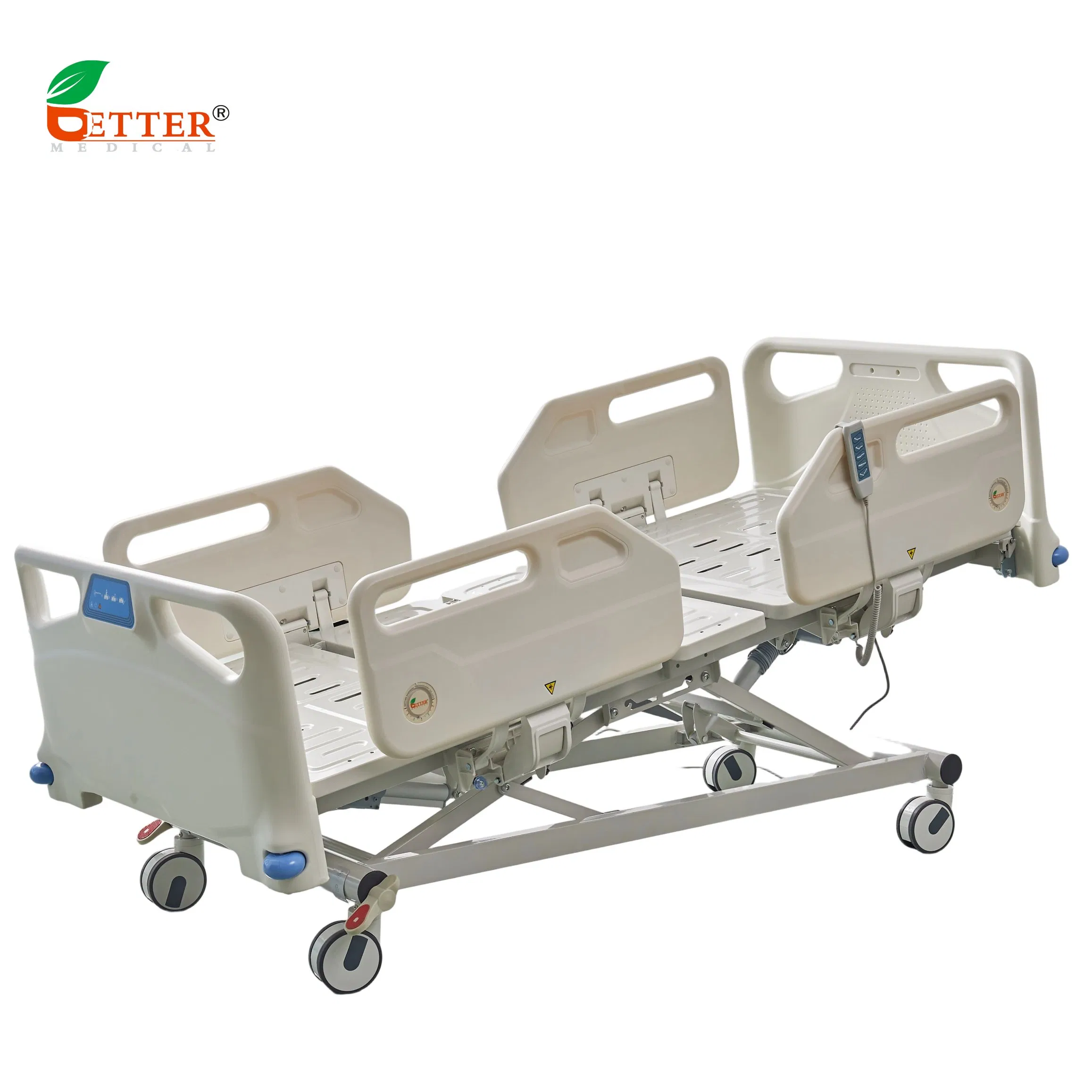

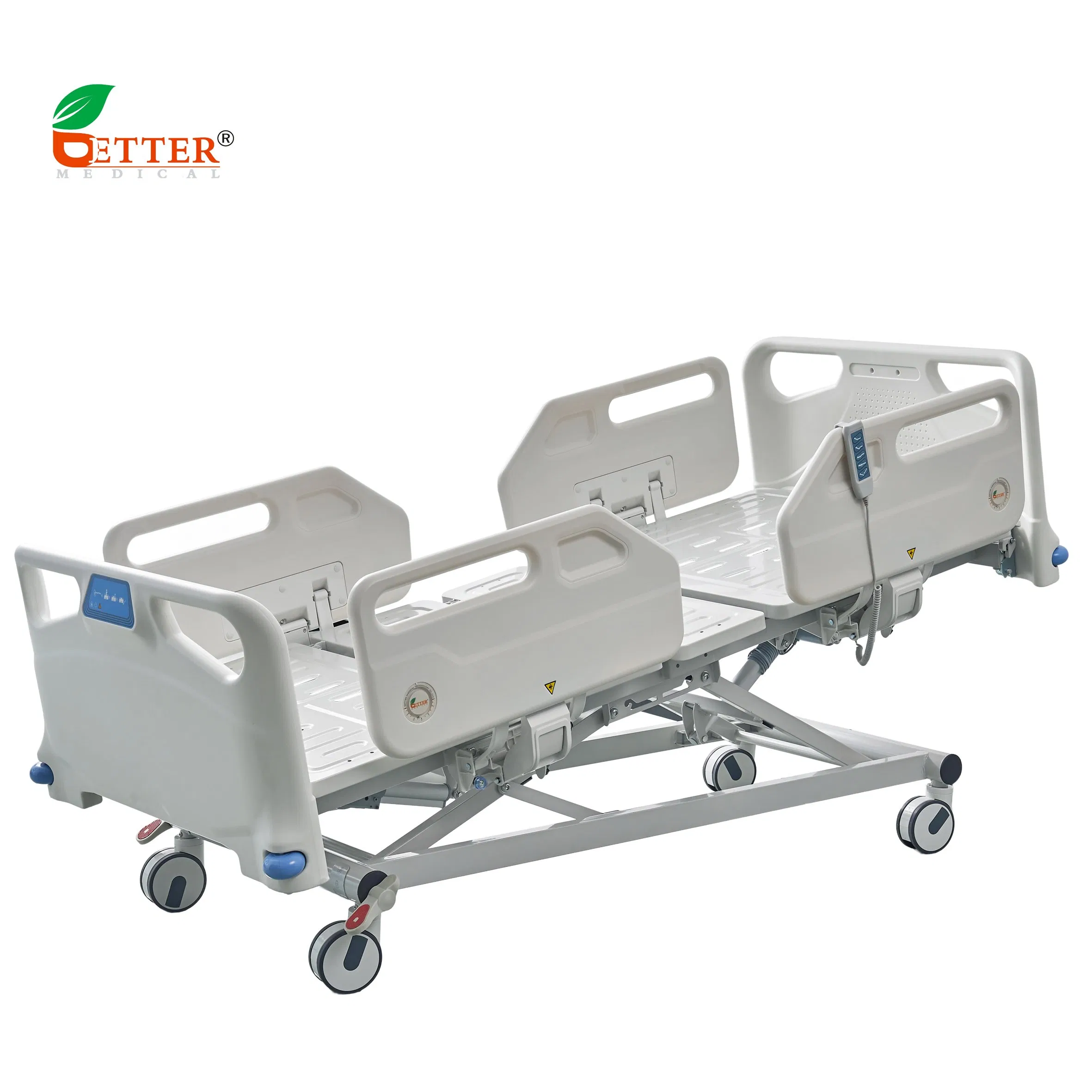

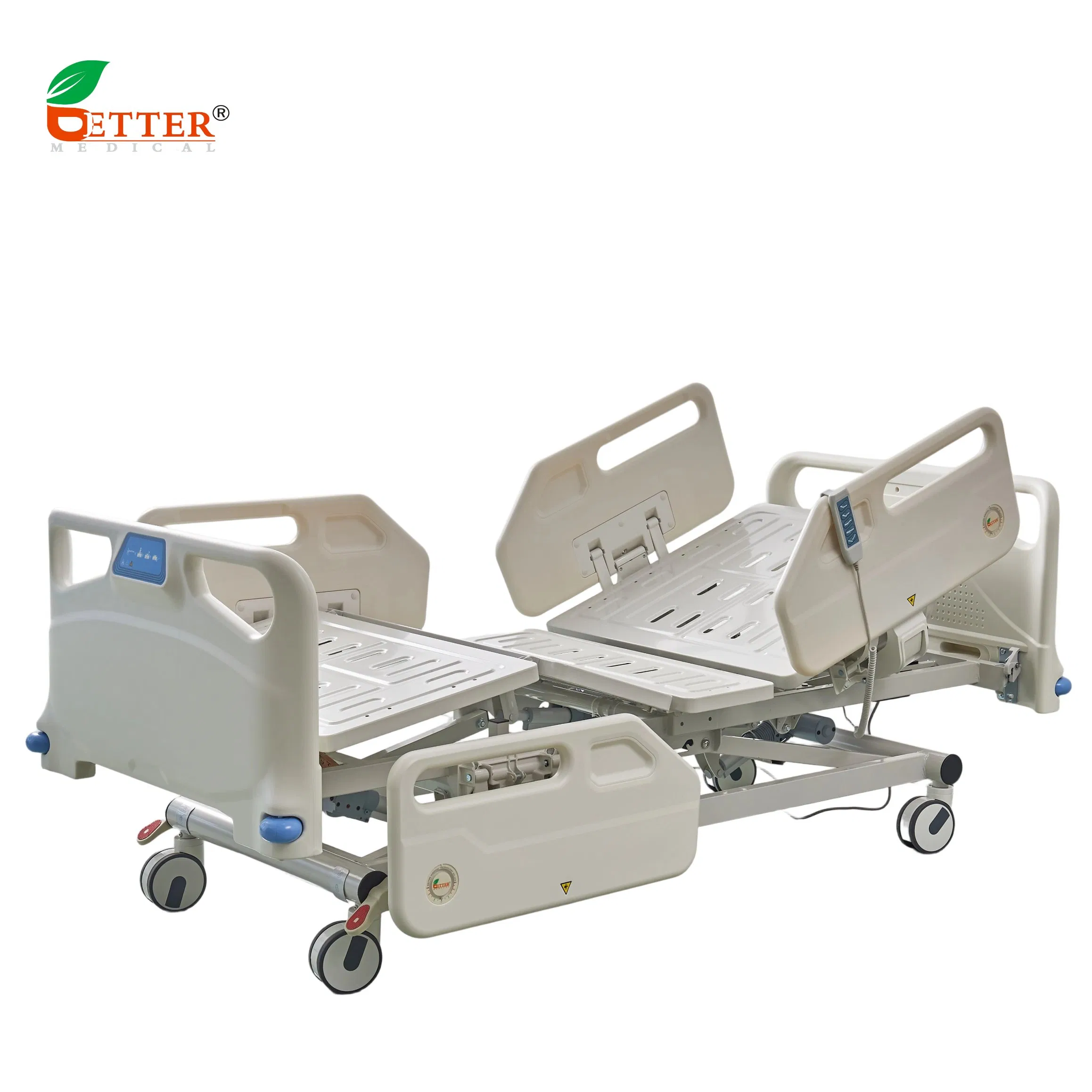

⚡ Full Electric Hospital Bed Features
Full Electric Adjustment
Adjustment of both bed sections and height makes life easier for both patients and caregivers. Ideal for medical facilities.
Independent Control
Patients can easily make bed adjustments independently with the touch of a button.
- Backrest Adjustable: Raise or lower the upper body section.
- Footrest Adjustable: Raise or lower the leg section.
- Hi-Lo: Vertical height adjustment for patient and caregiver convenience.
- Sit Position (Fowler’s): Semi-upright posture (45-60 degrees) for respiratory health.
- Reverse Trendelenburg: Head upward, feet downward to relieve head pressure.
- Trendelenburg: Feet raised above head, beneficial for specific heart conditions or surgery.

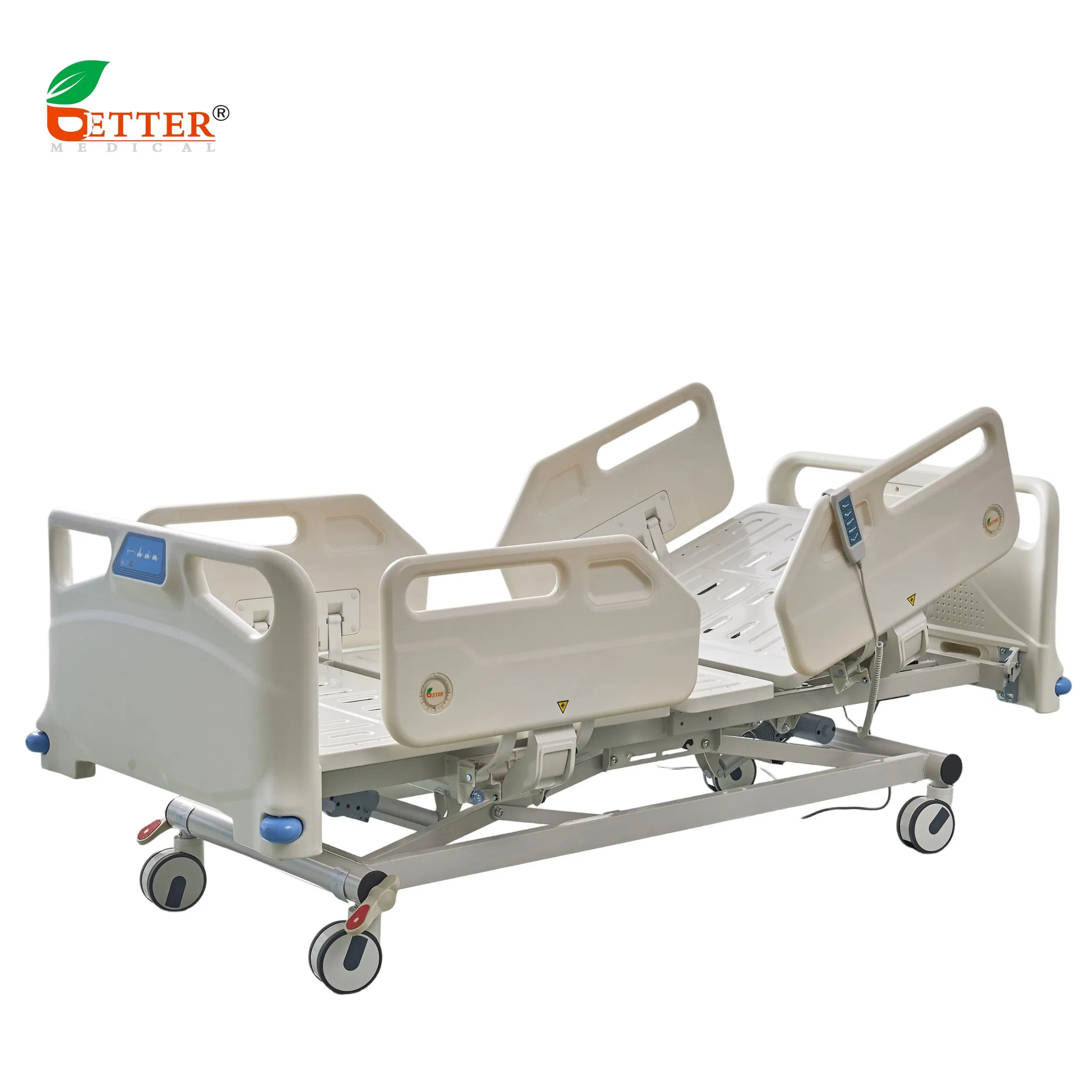

🛠️ Technical Specifications (Model: BT605EPZ)
Main Material: Steel + ABS + PP
Structure: 4 sections steel bed board, detachable head/foot board, PP side rails with control panels.
- Size: 2140x1000x450-790mm
- Bed board size: 1950x840x35mm
- Capacity weight: 250kgs
- Castors: 5" (12.5cm) with central brake system
- Power: 220~240V, 50~60Hz
🔧 Key Functions
- Backrest tilting: 0~75°±5°
- Footrest tilting: 0~45°±5°
- Reverse / Trendelenburg: 0~15°±1°
- Angle display and Backrest retractable function
📸 Product Gallery
❓ Frequently Asked Questions
What are the primary functions of this electric hospital bed?
This is a five-function bed providing backrest tilting, footrest tilting, height adjustment (Hi-Lo), Trendelenburg, and Reverse Trendelenburg positioning.
What is the maximum weight capacity of the bed?
The bed is designed to support a safe working load of up to 250kgs (approx. 550 lbs).
Is the bed easy for caregivers to move and secure?
Yes, it is equipped with 4-piece 5-inch castors featuring a central brake system for easy mobility and secure locking.
Does the bed come with a mattress and other accessories?
Standard accessories include a 12cm memory foam mattress, S.S I.V pole, side rails, head/foot boards, nursing control panel, and drainage hooks.
What safety certifications does this medical equipment have?
The product has passed ISO9001:2000 and ISO13485:2003 quality management system certifications and is CE and FDA approved.
How do patients adjust their positions independently?
The head-side rails include integrated patient control panels, allowing users to adjust the bed with the touch of a button without caregiver assistance.
