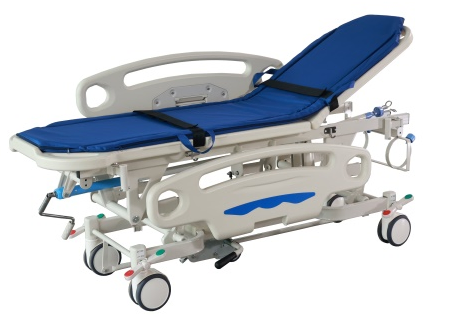

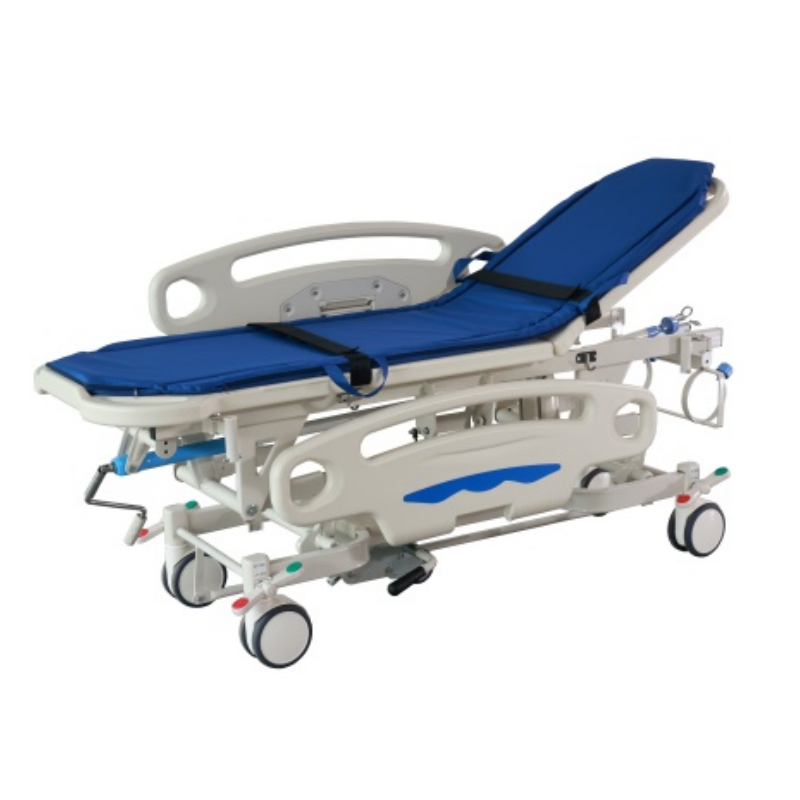

Good Quality Transfer Trolley Car Transport Hospital Patient Practical Transfer Bed

Customization: Available
Material: Plastic
Type: Transfer Bed

Product Description

i

Basic Specifications

Model NO.
MCF5003
Product Name
Hospital Bed Stretcher
Using Ambient
Hospital
Power Source
Hydraulic
Certification
CE, FDA
Warranty
1 Year
Numbers of Function
Five-function
Safe Working Load
220KG

Product Overview

Wholesale One-Stop Supplier Good Quality Transfer Trolley Car Transport Hospital Patient Practical Transfer Bed

Key Features

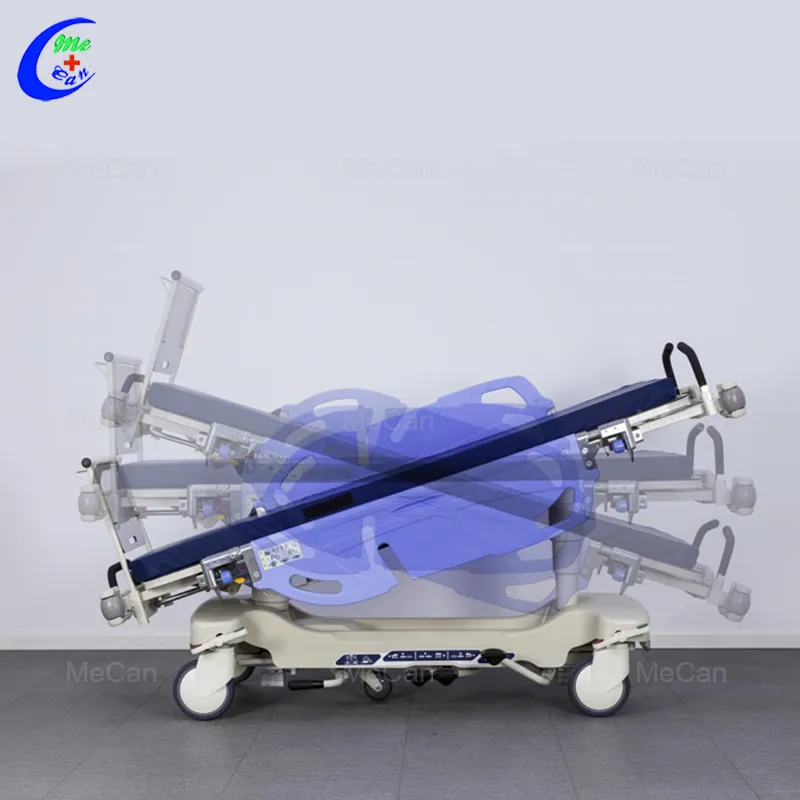

  • Adjustment Range: Back lift 0-75°, knee lift 0-40°, high-low adjustment 560-890mm, and tilt adjustment -18° to 18°.
  • Lifting System: Uses imported hydraulic cylinders for high-low control to ensure stability and gas springs for back lifting.
  • Durable Construction: Bed plate made of anti-fold special material with high strength; frame crafted from high-quality steel.

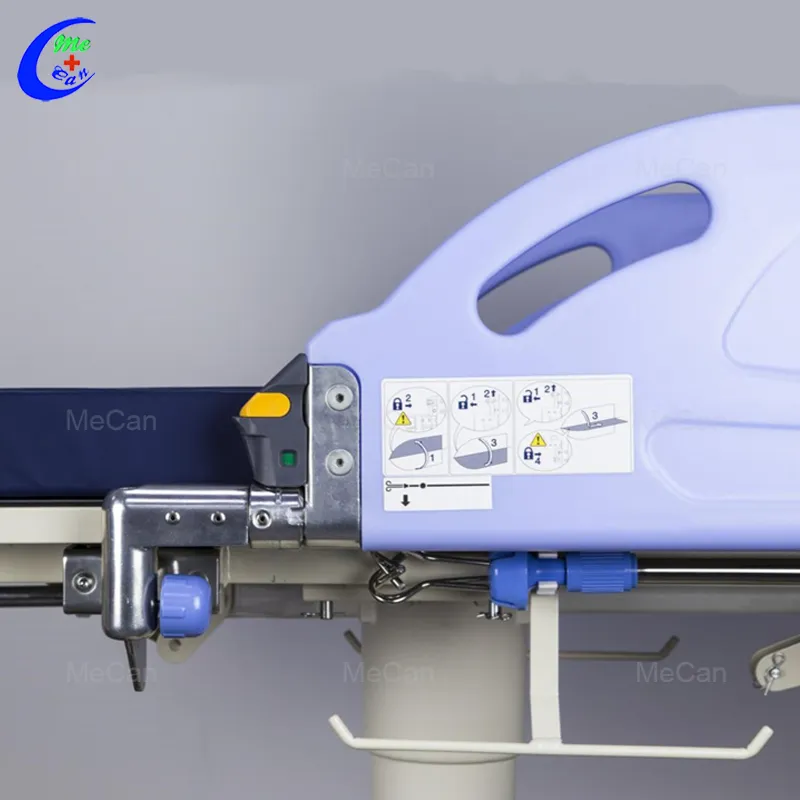

  • Safe Guardrails: PP resin molded guardrails (300mm height) with double safety locks and integrated angle displays.
  • Mobility: Four 200mm diameter central lock casters with a fifth wheel system for superior directional control during transport.
  • Integrated Storage: Includes a bottom tray for oxygen cylinders (up to 10kg) and storage for infusion stands.

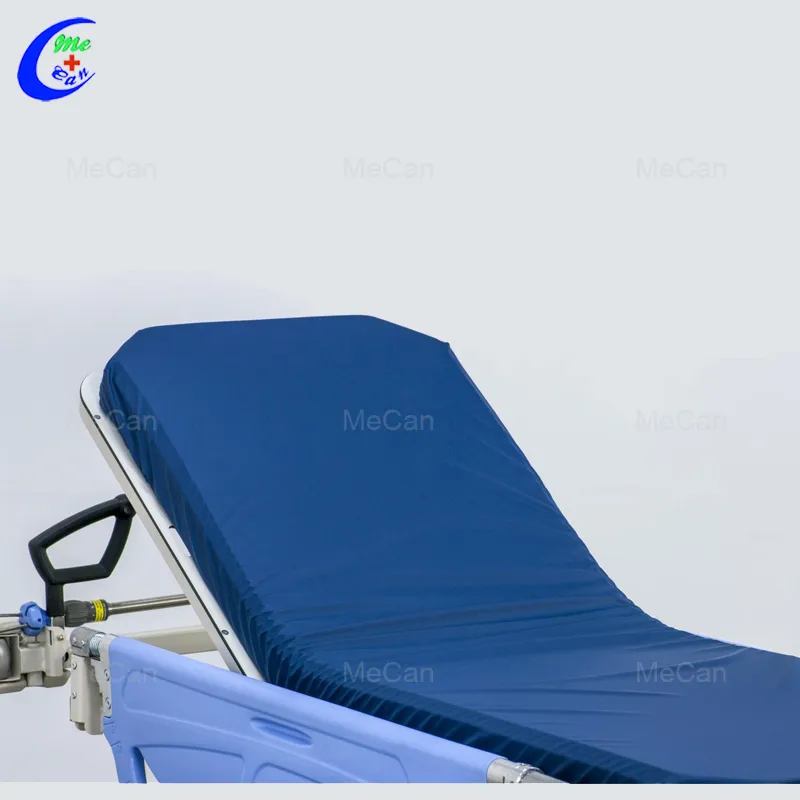

  • Comfortable Mattress: Waterproof fabric with zippers for easy cleaning and maintenance.
+

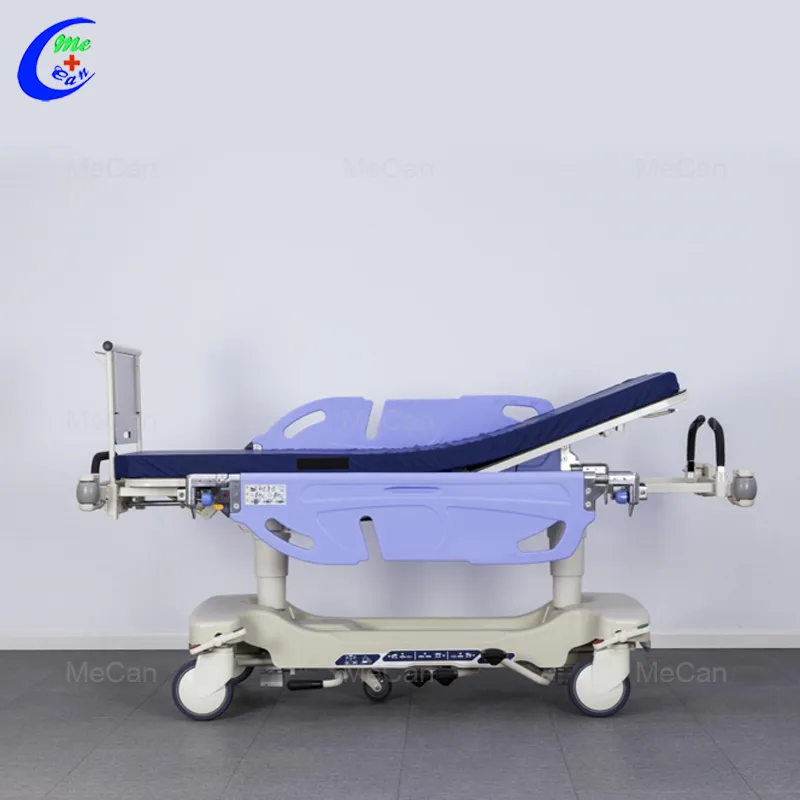

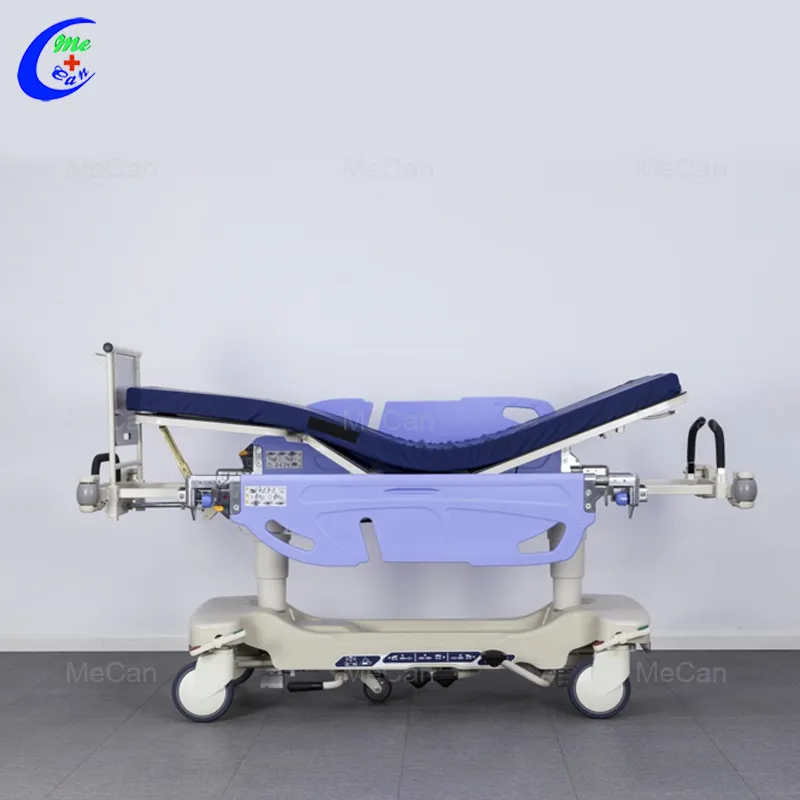

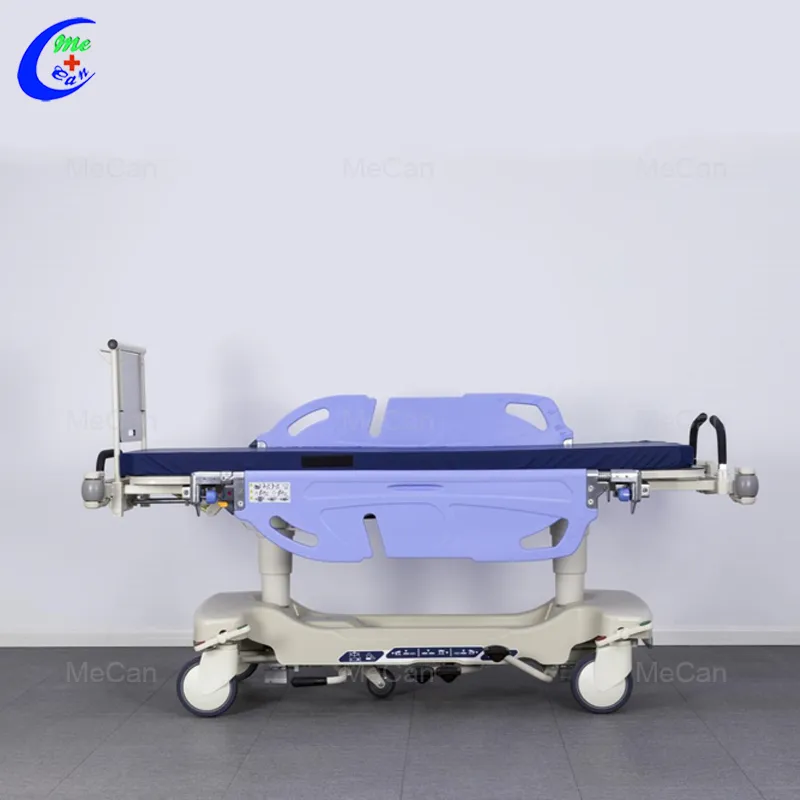

Detailed Views

T

Technical Specification

Length1930mm / 1880mm
Width645mm / 620mm
High-Low Range510mm - 850mm / 560mm - 890mm
Back Lift0 ~ 75°
Knee Lift0 ~ 40°
Tilt Range-18° ~ 18°
Mattress MaterialPU polyester, Polyurethane foam
Caster Diameter200mm
?

Why Choose Our Solutions

Ideal supplier for one-stop medical solutions

  • Pioneer supplier in one-stop medical equipment service.
  • Experience in supplying over 2,000+ hospitals worldwide.
  • Visualization in production, delivery, and transport processes.
  • Online training for installation, operation, and daily maintenance.
  • No MOQ requirement for ODM/OEM services.
  • Multi-language support including English, Spanish, and French.
Q

Frequently Asked Questions

1. What is the maximum weight capacity of this stretcher? The safe working load for the MCF5003 transfer stretcher is 220KG.
2. How is the height adjustment controlled? The high and low lifting system is controlled using high-quality imported hydraulic cylinders for smooth and stable operation.
3. Does the stretcher come with a mattress? Yes, it includes a waterproof mattress made of PU polyester and polyurethane foam, equipped with zippers for easy cleaning.
4. What are the key safety features of the guardrails? The guardrails are made of PP resin with double safety locks and feature integrated angle displays to monitor the backrest position.
5. What is the benefit of the fifth wheel system? The independent central fifth wheel system helps control the forward direction effectively and overcomes inertial force during transportation, making it safer for the patient.
6. What is the standard warranty for this product? The product comes with a one-year warranty for free, along with online technical support.
