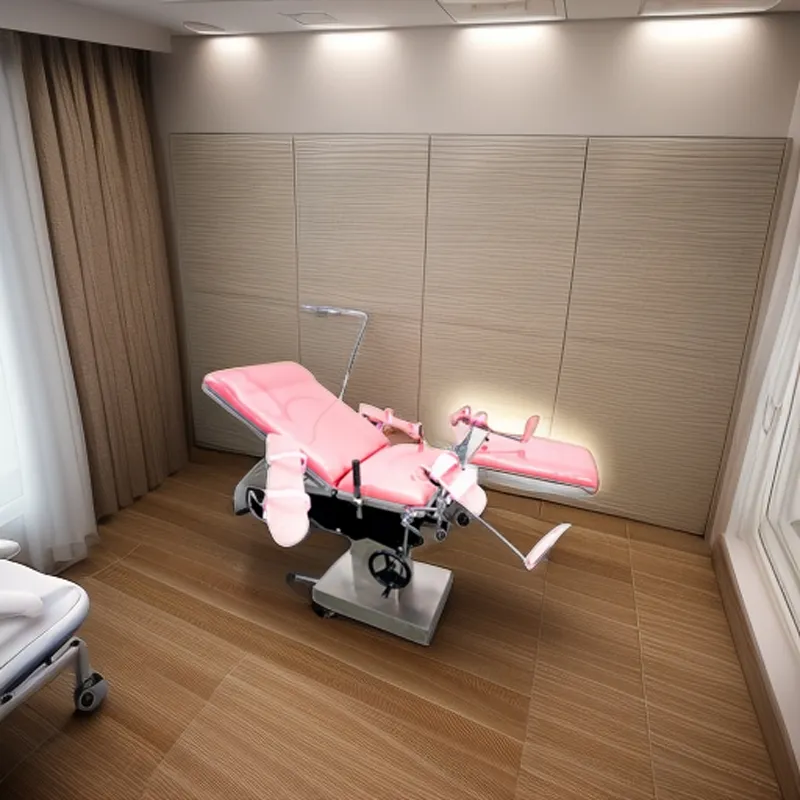

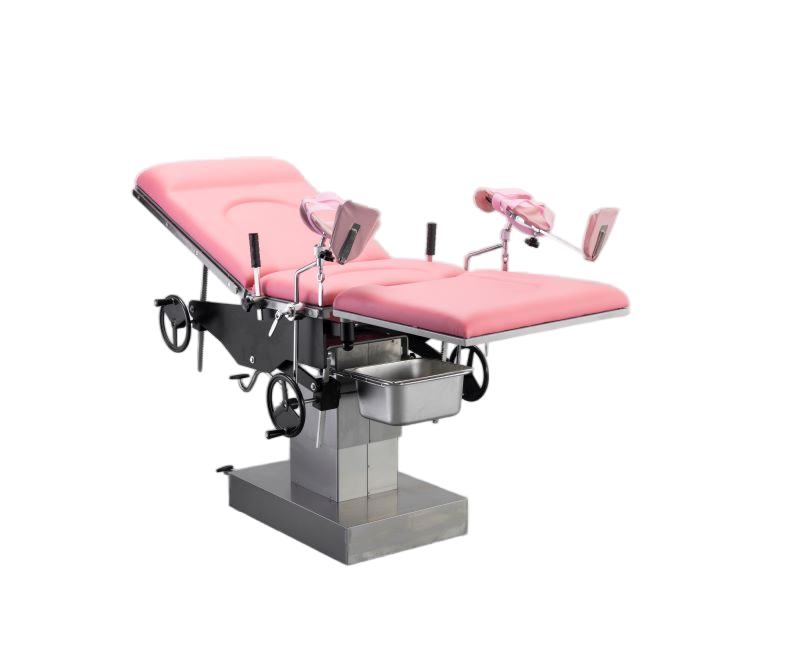

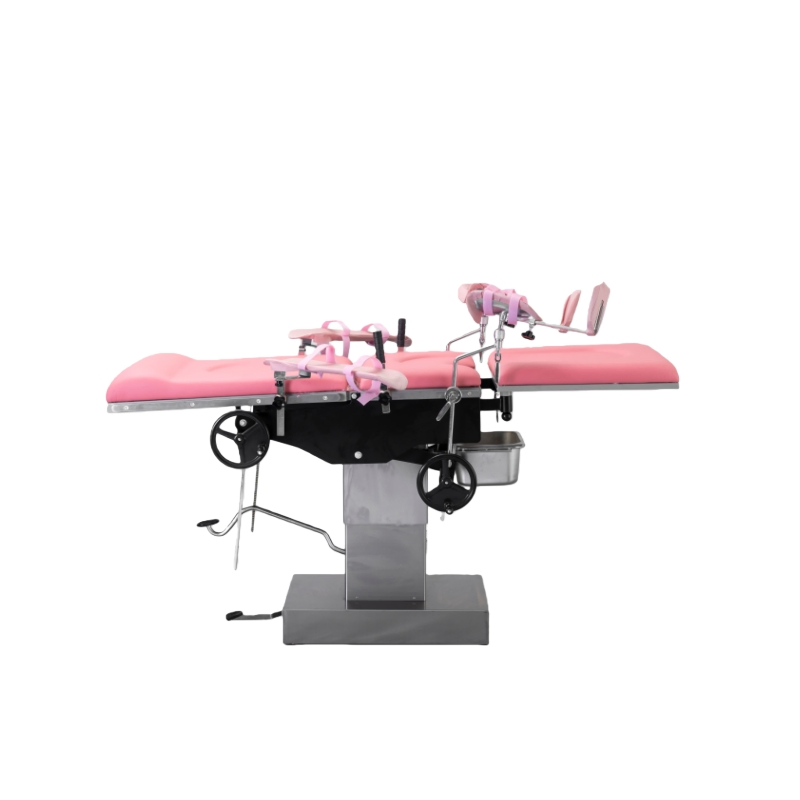

This product is mainly used for maternal delivery, gynecological examination, treatment, surgery, and more. It combines ergonomic design with advanced hydraulic technology.

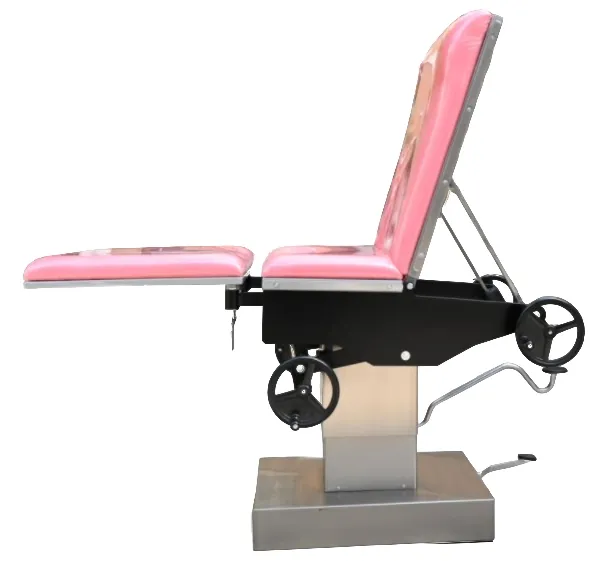

Hydraulic Lifting: The bed body adopts hydraulic lifting. The auxiliary table and main bed use a plug-in connection for easy operation.
Mechanical Versatility: Back panel folding and table tilting (forward/backward) are achieved through hand-operated gear meshing and rack transmission mechanisms.

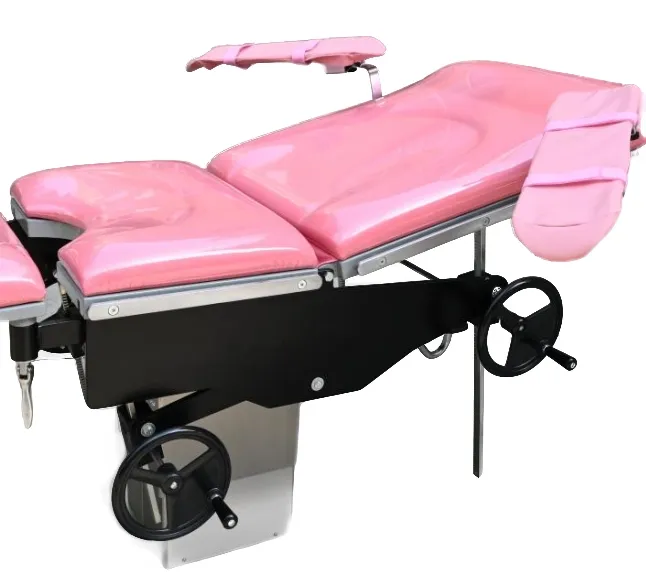

Premium Materials: Foot covers and pump covers are made of high-grade anti-fingerprint stainless steel for a beautiful, durable finish.
Leak-Proof Design: The oil pump barrel is constructed from high-quality seamless steel pipe, eliminating risks of oil seepage.

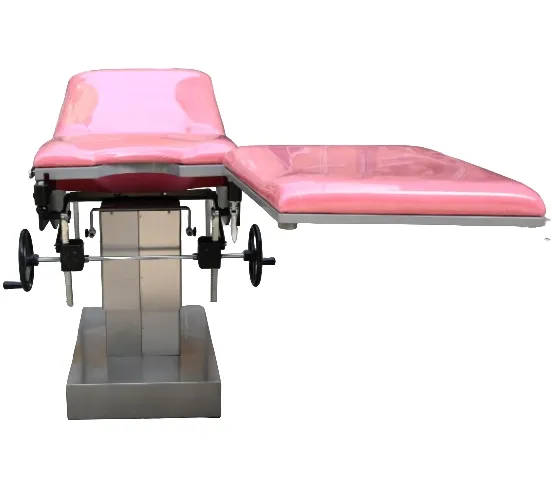

Easy Maneuverability: Equipped with side-mounted labor-saving pedals, floor-standing pedals for positioning, and movable casters.
Hygienic Finish: Main accessories feature eco-friendly chemical plating for wear resistance. The imported PU leather mattress is comfortable and easy to disinfect.
Technical Parameters
Parameter Item
Specification Details
Table Front and Back Tilt Angle
Front Tilt ≥ 55°, Back Tilt ≥ 35°
Back Plate Folding Angle
Upward bend ≥ 85°, Downward bend ≥ 10°

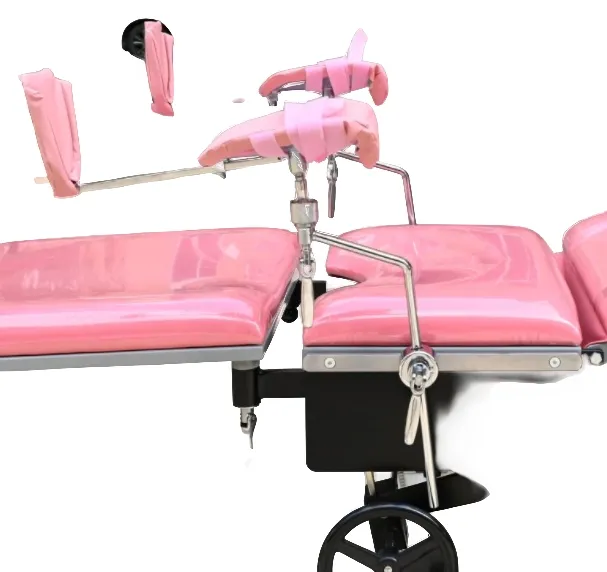

Leg Plates Rotation
Rotate outwards ≥ 90°
Table Surface Dimensions
Length ≥ 2000mm, Width ≥ 600mm (excluding rails)
Minimum Table Height
≤ 650mm (Mattress not included)
Lifting Stroke
≥ 240mm

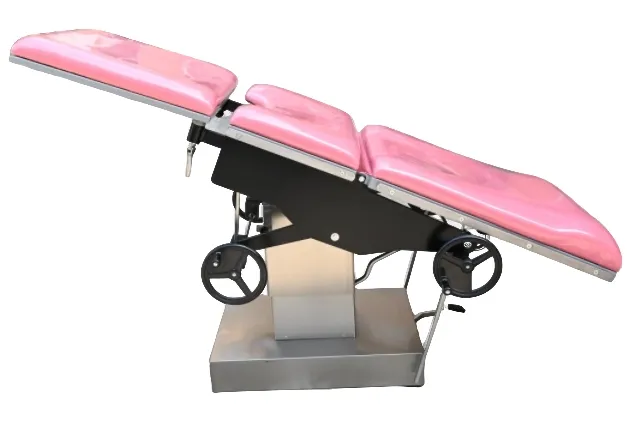

Detailed Photos
Capabilities & Technology
Our enterprise specializes in independent design and high-tech manufacturing of medical equipment. We are recognized for utilizing aerospace-grade high-tech carbon fiber composite materials in medical production. The main product line includes multi-functional imaging operation beds, orthopedic imaging beds, spinal surgery imaging beds, urology imaging beds, microscopic neurosurgery beds, and interventional imaging operation beds.
Frequently Asked Questions
What are the primary medical uses for this bed?
It is primarily designed for maternal delivery, gynecological examinations, surgical treatments, and general obstetric procedures.
How is the bed height adjusted?
The bed uses a hydraulic lifting system operated via a side-mounted labor-saving pedal for smooth height transitions.
Is the mattress easy to clean and disinfect?
Yes, the mattress is made of imported PU leather, which is soft, wear-resistant, and compatible with standard disinfectants or ultraviolet light sterilization.
What is the weight and stability support like?
The bed features a robust steel frame and a floor-standing pedal system that ensures reliable positioning and stability during medical procedures.
Can the leg and back sections be adjusted?
Absolutely. The back plate can fold upward ≥ 85°, and the leg plates can rotate outwards ≥ 90° to accommodate various surgical positions.
Does the design prevent hydraulic fluid leaks?
Yes, the oil pump barrel is manufactured from high-quality seamless steel pipe specifically to prevent oil leakage and seepage.
