📋 Basic Info.
Using Ambient
Hospital / ICU
Certification
CE, ISO13485, ISO14001, ISO45001, ISO9001
Control Panel
Central Control Panel
Angle Indicators
Backrest / Overall
Specification
2200*995*480-850mm
✨ Product Description

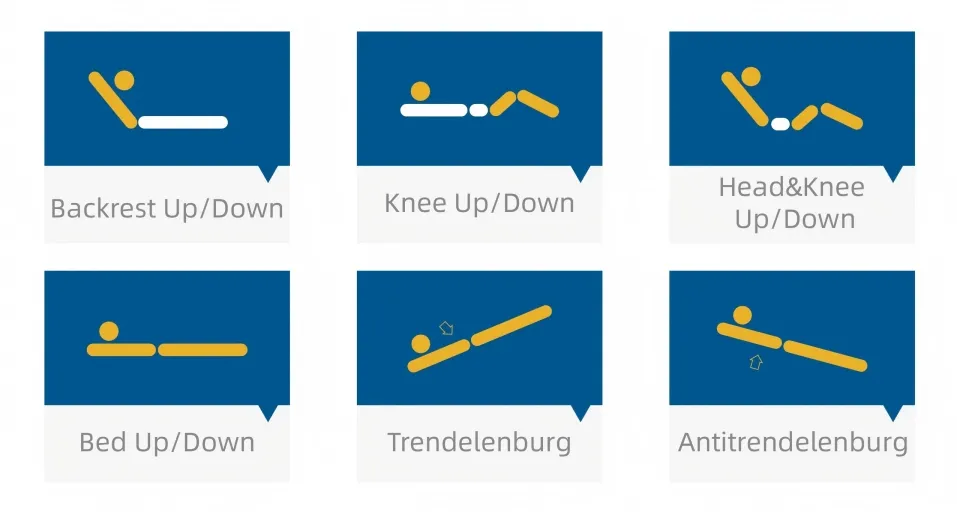

🔹 Basic Functions
- Electric backrest Up/Down
- Electric Knee Up/Down
- Electric Backrest & Knee Up/Down
- Electric Bed Height Up/Down

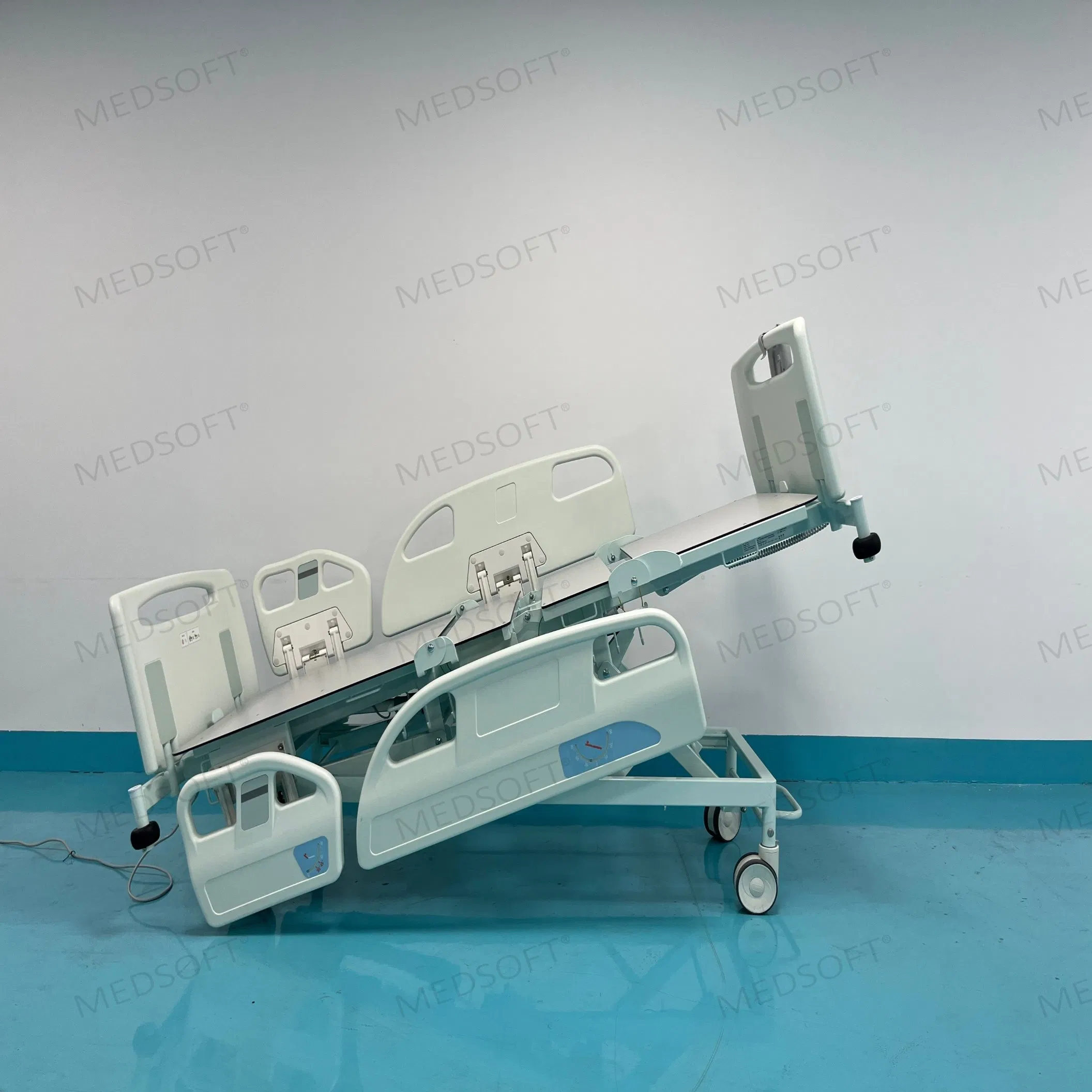

- Electric Trendelenburg & Anti-trendelenburg

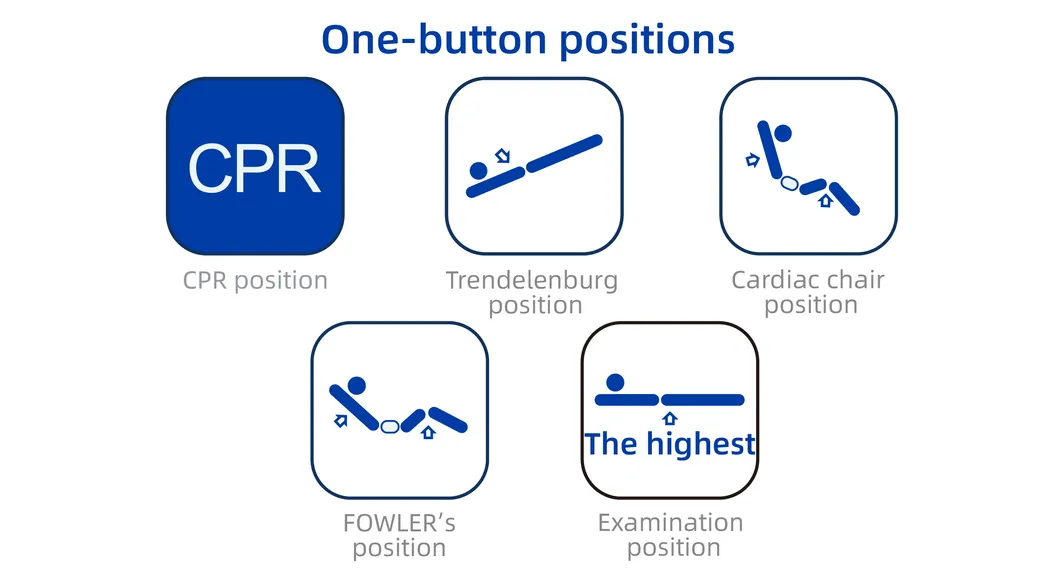

🔹 One-button Control Positions
Equipped with intelligent presets for critical clinical needs:
- Cardiac chair position
- Trendelenburg position
- Fowler Position
- Examination Position
- CPR position

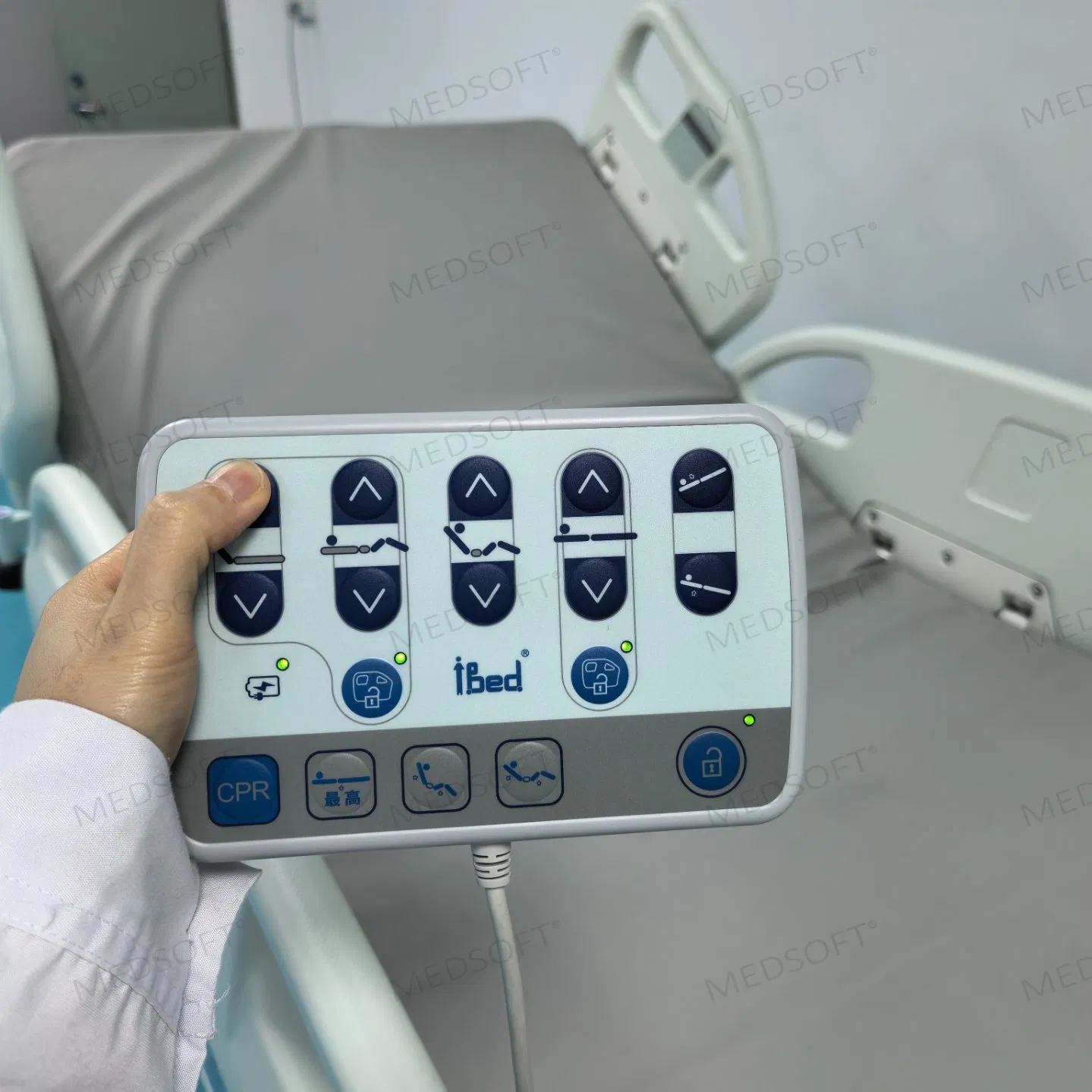

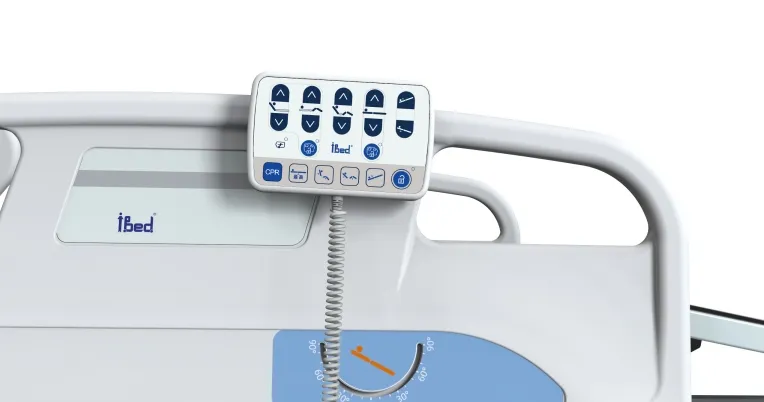

🔹 Caregiver Control Panel
Multi-function controller including basic functions, critical one-button positions, side guardrail lock, and power supply status display.

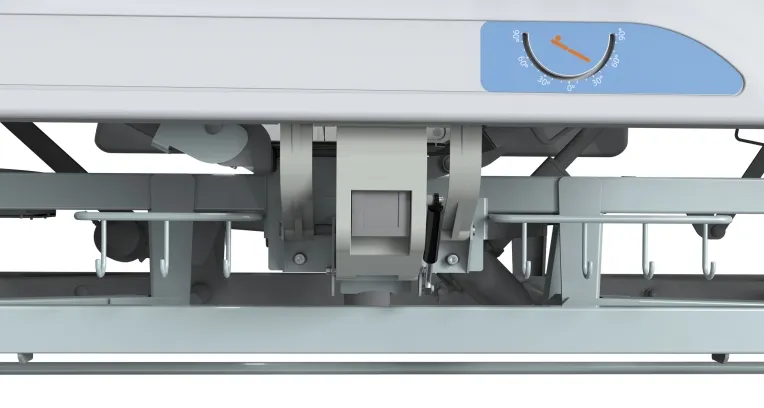

🔹 Clinical Angle Indicators
Precise indicators for backrest and bed tilt. Head of the bed can be raised 30-45° to help significantly reduce the incidence of VAP.
🛡️ Advanced Safety & Design

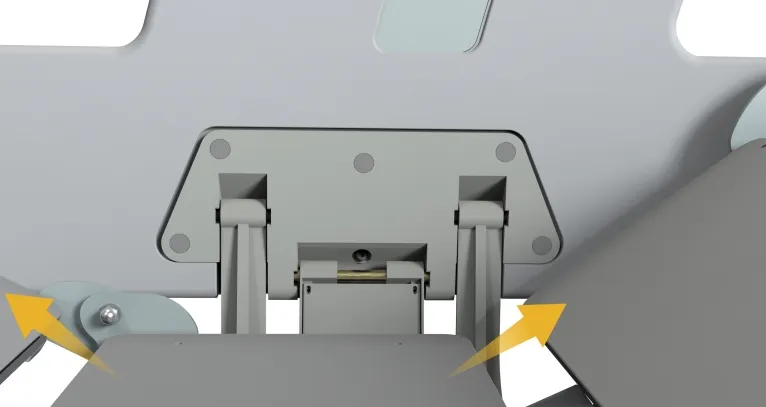

Auto-Rollback: Reduces patient displacement and shear force when adjusting positions.

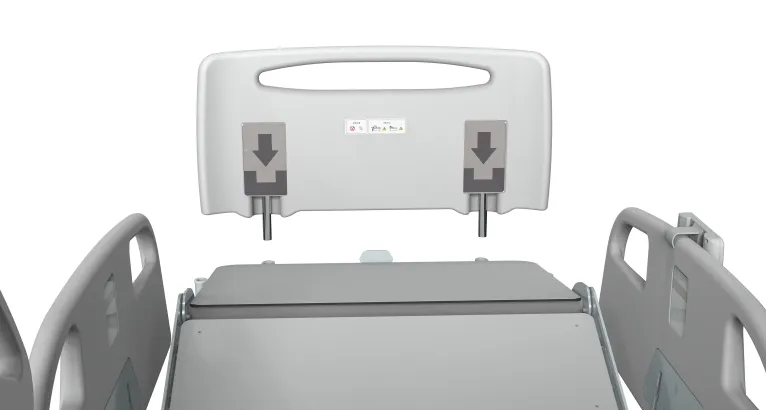

HDPE Bed Ends: One-step removable design to meet emergency ICU requirements.

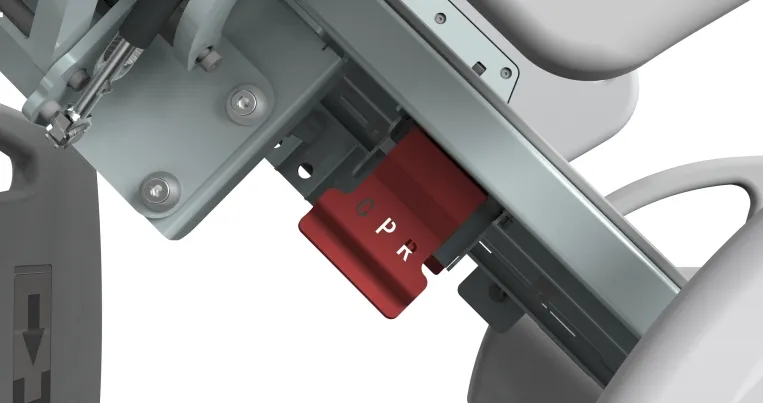

Manual CPR: Dual-sided levers with damping devices for safe, controlled backrest descent.
📊 Technical Parameters
| Parameter |
Specification |
| Overall Size (L*W*H) | 2200 * 995 * 480-850 mm |
| Mattress Platform | 2000 * 811 mm |
| Safe Working Load | 200 kg |
| Head Up/Down | 0 - 70° |
| Knee Up/Down | 0 - 35° |
| Trendelenburg / Anti-Trendelenburg | 0 - 16° |
| Motors | 4 pcs Linak (Denmark) |
| Castors | 5" Central Locking System |

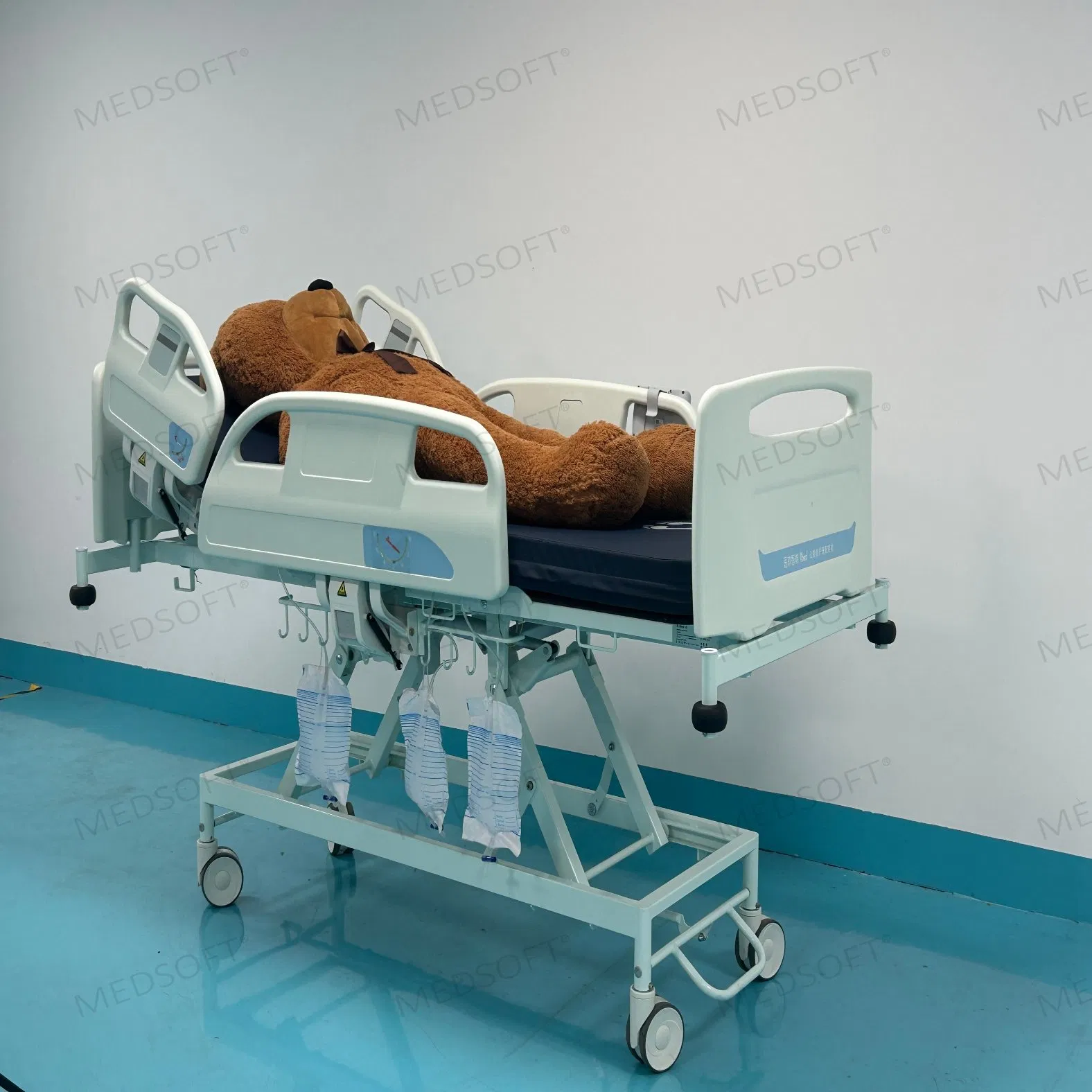

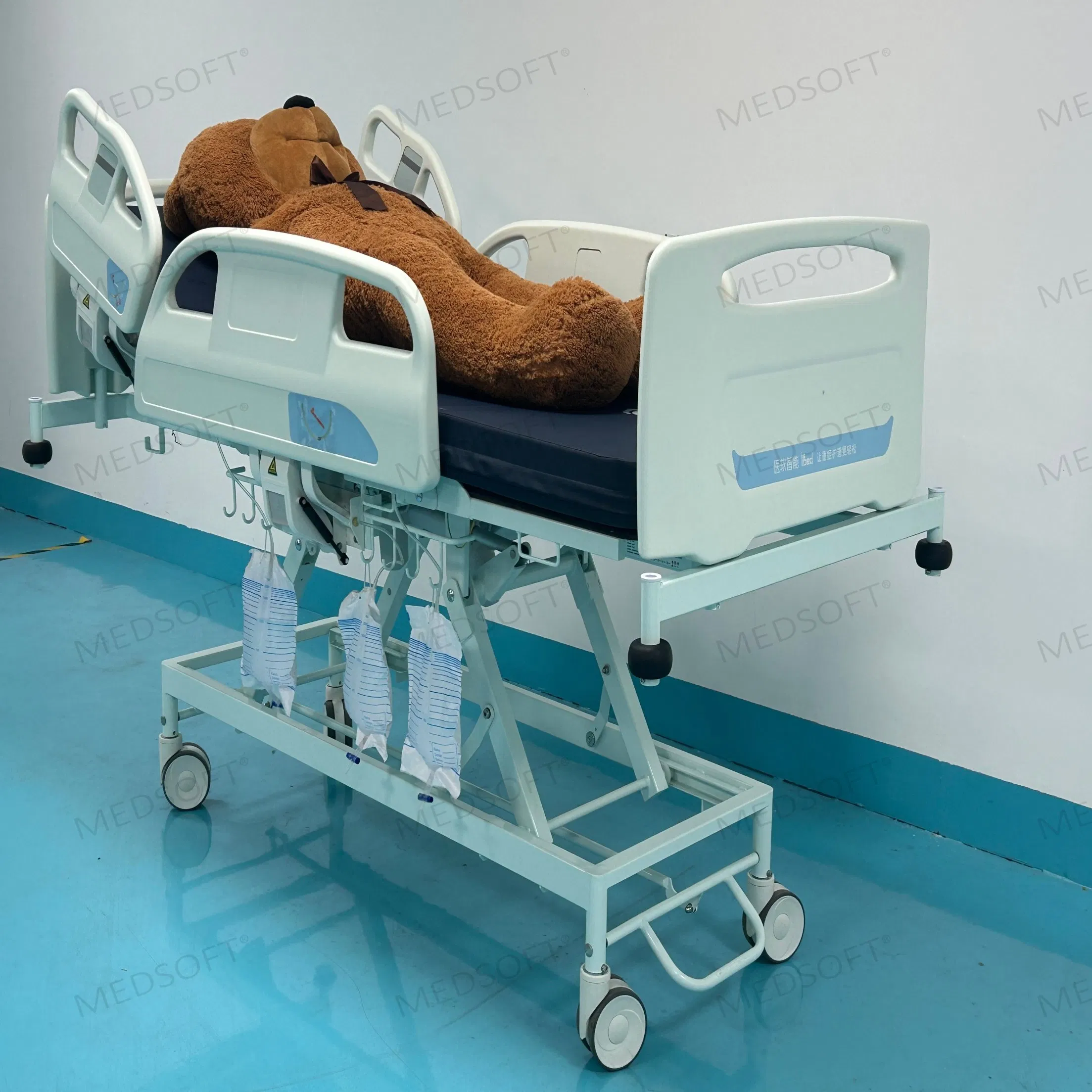

| Drainage Hooks | 14 pcs |
🏗️ Quality & Manufacturing
- Linak Motors: High stability Danish motors with UL/ROHS/EN standards.
- Premium Steel: Sourced from Fortune Global 500 Baosteel.
- Durable Braking: Tested for 10,000 uninterrupted braking cycles.
- Epoxy Painting: Anti-bacterial coating, ASTM tested for impact resistance.
- Robotic Welding: 360° full smooth welding for maximum structural integrity.
❓ Frequently Asked Questions
Q1. Can I get a sample of the iBed 1A?
Yes, samples are available for quality evaluation.
Q2. Is OEM/ODM customization supported?
Yes, we support using your own logo or specific design requirements on the product.
Q3. What is the production capacity?
Our manufacturing facility has a capacity of approximately 1,000 hospital beds per month.
Q4. How long is the delivery time?
Standard stock items are usually shipped within 7 days.
Q5. Does the bed come with a warranty?
We provide lifetime service support and 1% free spare parts with bulk orders.
Q6. What certifications do these medical beds hold?
Our beds are fully certified with CE, ISO13485, ISO14001, and meet IEC60601 safety standards.
